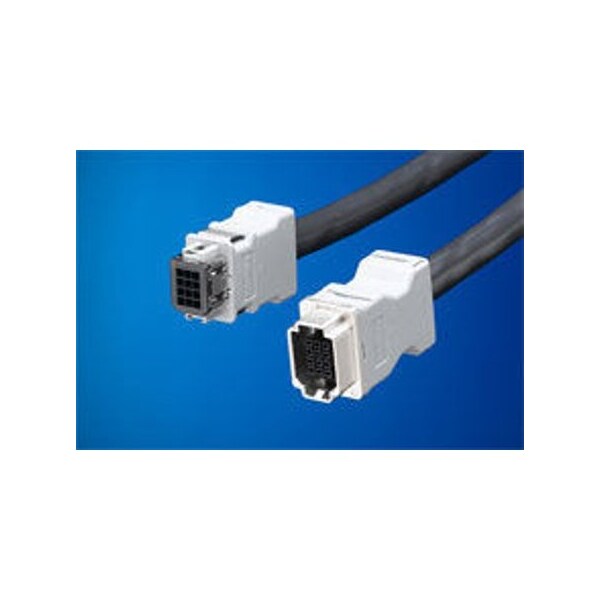

Conector de Telecomunicaciones y Datos, 20 contactos, hembra, recto, terminal de engarce, con seguro, enchufe.
| Series | 51239 |
|---|---|
| Voltage - Maximum | 250V AC (RMS)/DC |
| Circuits (maximum) | 20 |
| Shielded | No |
| Gender | Plug |
| Orientation | Vertical |
| Lock to Mating Part | Yes |
| Component Type | Housing |
| CSA | LR19980 |
| Flammability | 94 V to 0 |
| Material - Resin | Polyester |
| Keying to Mating Part | Yes |
| PCB Locator | No |
| Polarized to Mating Part | Yes |
| Pitch - Mating Interface | 3 mm |
| UL | E29179 |
| Color - Resin | Black |
| Waterproof / Dustproof | No |
| Temperature Range - Operating | -40° to +105°C |
| Breakaway | No |
| Ports | 1 |
| Number of Rows | 5 |
| Product Name | CRC |
| Package Quantity | 1 |
