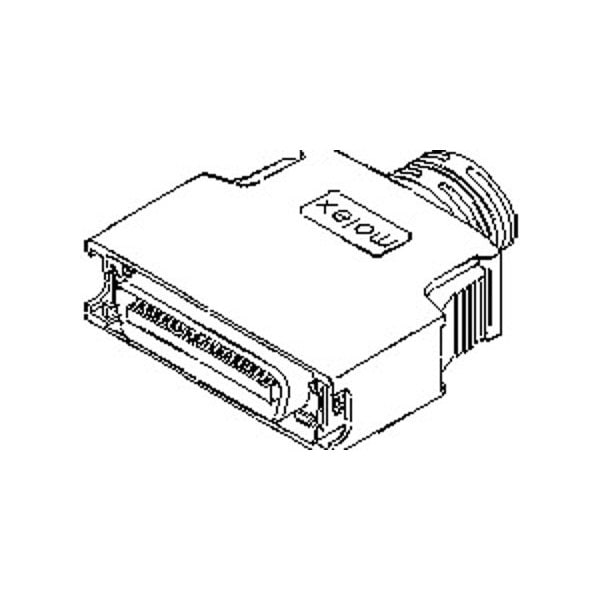

Conector de telecomunicaciones y datos, 20 contactos, macho, recto, enchufe.
| Application | Wire-to-Board |
|---|---|
| Series | 52316 |
| Shielded | Yes |
| Shield Type | Full Shield |
| Durability (mating cycles max) | 500 |
| Current - Maximum per Contact | 1 A |
| Product Name | Leaf Style Contact |
| Pitch - Mating Interface | 1.27 mm |
| Number of Rows | 2 |
| Plating min - Mating | 0.762 um |
| Waterproof / Dustproof | No |
| Polarized to PCB | No |
| Wire Size (AWG) | 28 |
| Wire Insulation Diameter | 0.58 mm max. |
| Lock to Mating Part | Yes |
| PCB Locator | No |
| Temperature Range - Operating | -55° to +85°C |
| Ports | 1 |
| Material - Plating Termination | Tin |
| Circuits (Loaded) | 20 |
| Gender | Plug |
| Voltage - Maximum | 250V AC (RMS)/DC |
| Material - Plating Mating | Gold |
| Component Type | Plug |
| Material - Metal | Phosphor Bronze |
| UL | E29179 |
| Polarized to Mating Part | Yes |
| Flammability | 94 V to 0 |
| Termination Interface Style | IDT, Pierce |
| Package Quantity | 1 |
