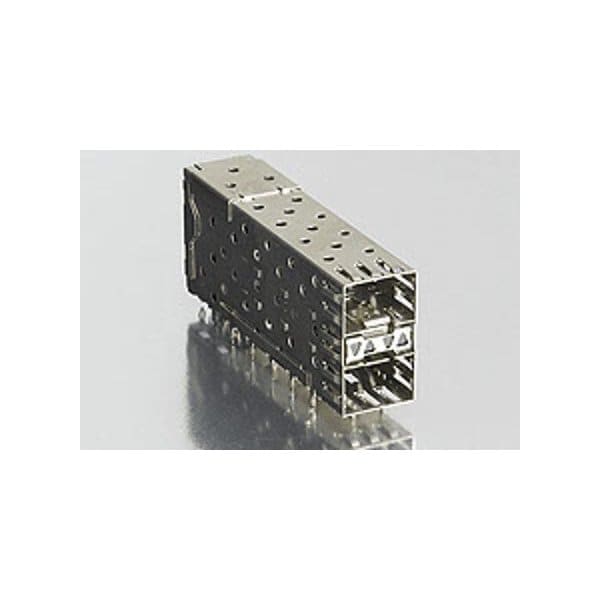

Conector de telecomunicaciones y telecomunicaciones, 20+20 contactos (es), macho, ángulo recto, terminal de inserción a presión, bloqueo.
| Number of Contacts | 40 |
|---|---|
| Color | Black, Clear |
| Max. Voltage | 30 V |
| Application | Module-to-Board |
| Series | 75640 |
| Standards | CSA Certified, UL E29179 |
| Material | High Temperature Thermoplastic, Polycarbonate |
| Hole Center to Center | 0.8 mm |
| Shielded | Yes |
| Max. Temp. | 85 deg C |
| Terminal Type | Through Hole - Compliant Pin |
| Flammability Rating | UL 94V-0 |
| Terminal Finish | Tin Plated |
| Contact Finish | Gold Plated |
| Current Rating | 0.5 A |
| Contact Plating Thickness | 0.762 µm |
| PCB Locator | Yes |
| Waterproof / Dustproof | No |
| Color - Resin | Black, Clear |
| Lock to Mating Part | Yes |
| Circuits (Loaded) | 40 |
| Pitch - Mating Interface | 0.8 mm |
| Polarized to Mating Part | Yes |
| Material - Plating Mating | Gold |
| Shield Type | EMI Fingers |
| Durability (mating cycles max) | 200 |
| UL | E29179 |
| Orientation | Right Angle |
| PCB Thickness - Recommended | 2.4 mm |
| PC Tail Length | 3.05 mm |
| Temperature Range - Operating | -40° to +85°C |
| CSA | LR19980 |
| Component Type | Receptacle |
| Material - Resin | High Temperature Thermoplastic, Polycarbonate |
| Material - Metal | High Performance Alloy |
| Product Name | SFP |
| Flammability | 94 V to 0 |
| Plating min - Mating | 0.762 um |
| PCB Retention | Yes |
| Material - Plating Termination | Tin |
| Current - Maximum per Contact | 0.5 A |
| Polarized to PCB | Yes |
| Package Quantity | 1 |
