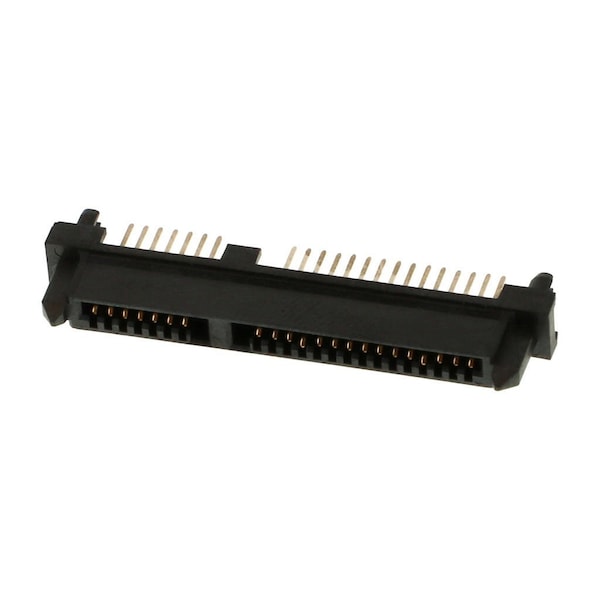

Conector de telecomunicaciones y datos, 22 contactos, hembra, recto, terminal de soldadura, bloqueo, receptáculo.
| Application | Board-to-Board, Signal |
|---|---|
| Series | 87779 |
| PC Tail Length | 3.45 mm |
| Temperature Range - Operating | -40° to +105°C |
| CSA | LR19980 |
| Max-Cycle | 1 |
| Flammability | 94 V to 0 |
| Termination Interface Style | Surface Mount |
| (p)ower-(s)ignal Configuration | 15p - 7s |
| Glow-Wire Capable | No |
| Voltage - Maximum | 30 V |
| PCB Locator | Yes |
| Polarized to PCB | Yes |
| UL | E29179 |
| Orientation | Vertical |
| PCB Retention | None |
| Material - Plating Termination | Tin |
| Component Type | PCB Receptacle |
| Circuits (Loaded) | 22 |
| Max-Temp | 260 |
| Product Name | Serial ATA |
| Number of Rows | 1 |
| Material - Plating Mating | Gold |
| Current - Maximum per Contact | 1.5 A |
| Durability (mating cycles max) | 500 |
| Pitch - Mating Interface | 1.27 mm |
| Plating min - Mating | 0.762 um |
| Max-Duration | 10 |
| PCB Thickness - Recommended | 0.8 mm, 2.5 mm |
| Lock to Mating Part | Yes |
| Polarized to Mating Part | Yes |
| Package Quantity | 1 |
