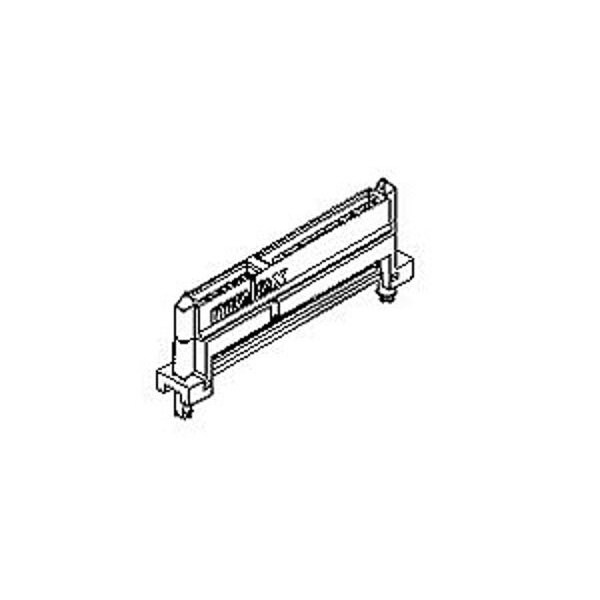

Conector de telecomunicaciones y datos, 22 contactos, hembra, recto, terminal de montaje superficial, receptáculo.
| Number of Contacts | 22 |
|---|---|
| Max. Voltage | 30 V |
| Application | Board-to-Board, Signal |
| Series | 87781 |
| Hole Center to Center | 1.27 mm |
| Terminal Type | Surface Mount, Through Hole |
| Max. Temp. | 260 deg C |
| Current Rating | 1.5 A |
| Contact Finish | Gold Plated |
| Contact Plating Thickness | 0.762 µm |
| Terminal Finish | Tin Plated |
| Number of Rows | 1 |
| Material - Plating Termination | Tin |
| Durability (mating cycles max) | 500 |
| Orientation | Vertical |
| Polarized to Mating Part | Yes |
| Max-Duration | 10 |
| Glow-Wire Capable | No |
| Guide to Mating Part | Yes |
| Current - Maximum per Contact | 1.5 A |
| (p)ower-(s)ignal Configuration | 15p - 7s |
| PCB Retention | None |
| Product Name | Serial ATA |
| Lock to Mating Part | None |
| Plating min - Mating | 0.762 um |
| Circuits (Loaded) | 22 |
| Polarized to PCB | Yes |
| PCB Locator | Yes |
| Temperature Range - Operating | -40° to +105°C |
| Material - Plating Mating | Gold |
| Termination Interface Style | Through Hole, Surface Mount |
| Max-Temp | 260 |
| Component Type | PCB Receptacle |
| Pitch - Mating Interface | 1.27 mm |
| Package Quantity | 1 |
