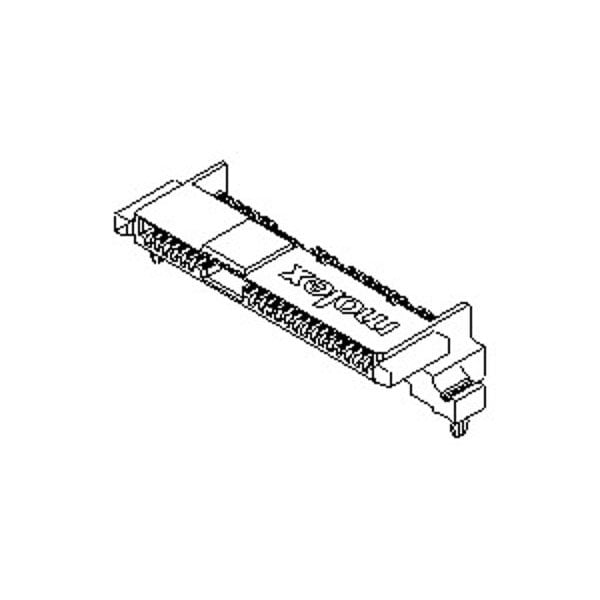

Conector de telecomunicaciones y datos, 29 contactos, hembra, ángulo recto, terminal de montaje en superficie.
| Connector Type | Female |
|---|---|
| Number of Contacts | 29 |
| Color | Black |
| Max. Voltage | 30 V |
| Standards | CSA Certified, UL E29179 |
| Material | High Temperature Thermoplastic |
| Features | Surface Mount Compatible |
| Hole Center to Center | 0.8 mm, 1.27 mm |
| Max. Temp. | 260 deg C |
| Terminal Type | Surface Mount |
| Number of Rows | 2 |
| Contact Finish | Gold Plated |
| Terminal Finish | Tin Plated |
| Contact Plating Thickness | 0.762 µm |
| Flammability Rating | UL 94V-0 |
| Current Rating | 1.5 A |
| Package Quantity | 1 |
