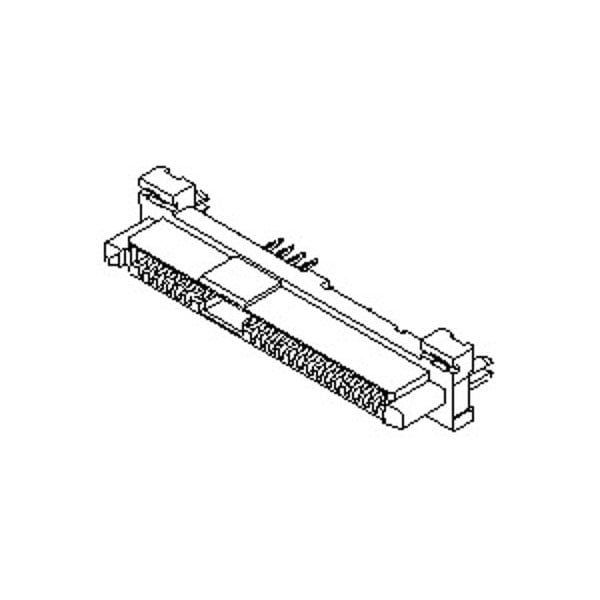

Conector de telecomunicaciones y datos, 29 contactos, hembra, recto, terminal de presión ajustada, receptáculo.
| Connector Type | Female |
|---|---|
| Number of Contacts | 29 |
| Color | Black |
| Max. Voltage | 30 V |
| Application | Board-to-Board |
| Series | 87863 |
| Standards | CSA Certified, UL E29179 |
| Terminal Type | Through Hole - Compliant Pin |
| Shielded | No |
| Material | High Temperature Thermoplastic |
| Max. Temp. | 55 deg C |
| Hole Center to Center | 0.8 mm, 1.27 mm |
| Flammability Rating | UL 94V-0 |
| Terminal Finish | Tin Plated |
| Current Rating | 1.5 A |
| Number of Rows | 2 |
| Contact Plating Thickness | 0.762 µm |
| Contact Finish | Gold Plated |
| Material - Plating Termination | Tin |
| Lock to Mating Part | None |
| PCB Locator | Yes |
| Orientation | Vertical |
| Material - Resin | High Temperature Thermoplastic |
| PCB Thickness - Recommended | 2.29 mm, 3.18 mm |
| UL | E29179 |
| Current - Maximum per Contact | 1.5 A |
| PC Tail Length | 2.2 mm, 2.7 mm |
| Polarized to Mating Part | Yes |
| Durability (mating cycles max) | 500 |
| Component Type | Receptacle |
| Temperature Range - Operating | 0° to +55°C |
| Panel Mount | Yes |
| Material - Metal | Phosphor Bronze |
| Circuits Detail | 14, 15 |
| Waterproof / Dustproof | No |
| Plating min - Mating | 0.762 um |
| PCB Retention | Yes |
| Material - Plating Mating | Gold |
| Keying to Mating Part | Yes |
| Polarized to PCB | Yes |
| Pitch - Mating Interface | 0.8 mm, 1.27 mm |
| CSA | LR19980 |
| Product Name | SAS 6G, SAS-2 |
| Flammability | 94 V to 0 |
| Package Quantity | 1 |
