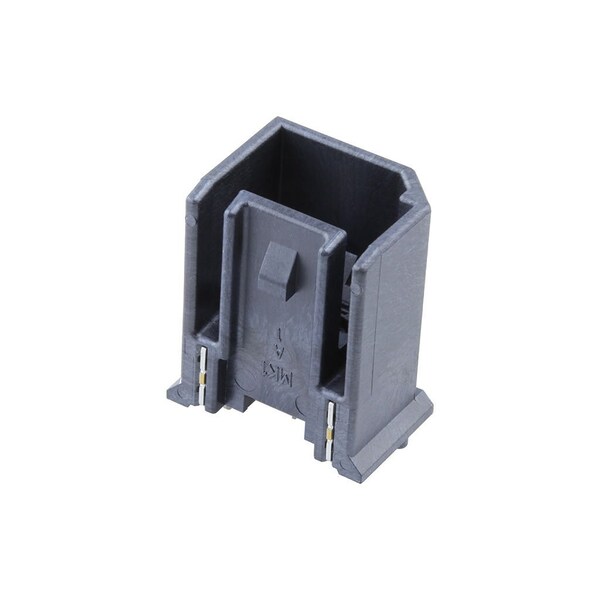

Telecom And Datacom Connector, 5 Contact(S), Male, Straight, Solder Terminal, Plug
| Color | Black |
|---|---|
| Series | 104004 |
| Max. Voltage | 5 V |
| Application | Automotive, Signal, Wire-to-Board |
| Material | High Temperature Thermoplastic |
| Number of Contacts | 5 |
| Contact Finish | Gold Plated |
| Max. Temp. | 85 deg C |
| Terminal Type | Through Hole |
| Hole Center to Center | 0.8 mm |
| Current Rating | 1 A |
| Number of Rows | 1 |
| Contact Plating Thickness | 0.762 µm |
| Terminal Finish | Tin Plated |
| First Mate / Last Break | No |
| Voltage - Maximum | 5V (RMS) |
| Component Type | PCB Header |
| Pitch - Mating Interface | 0.8 mm |
| Shrouded | No |
| Temperature Range - Operating | -40° to +85°C |
| Current - Maximum per Contact | 1 A |
| Stackable | No |
| Material - Resin | High Temperature Thermoplastic |
| PCB Retention | Yes |
| Material - Plating Mating | Gold |
| Polarized to Mating Part | Yes |
| Guide to Mating Part | No |
| Polarized to PCB | Yes |
| Durability (mating cycles max) | 25 |
| Circuits (Loaded) | 5 |
| PCB Locator | Yes |
| PCB Thickness - Recommended | 1.6 mm |
| Orientation | Vertical |
| Breakaway | No |
| Lock to Mating Part | Yes |
| Product Name | HSAutoLink |
| Keying to Mating Part | None |
| Plating min - Mating | 0.762 um |
| Glow-Wire Capable | No |
| Material - Metal | Alloy |
| Material - Plating Termination | Tin |
| Package Quantity | 1 |
