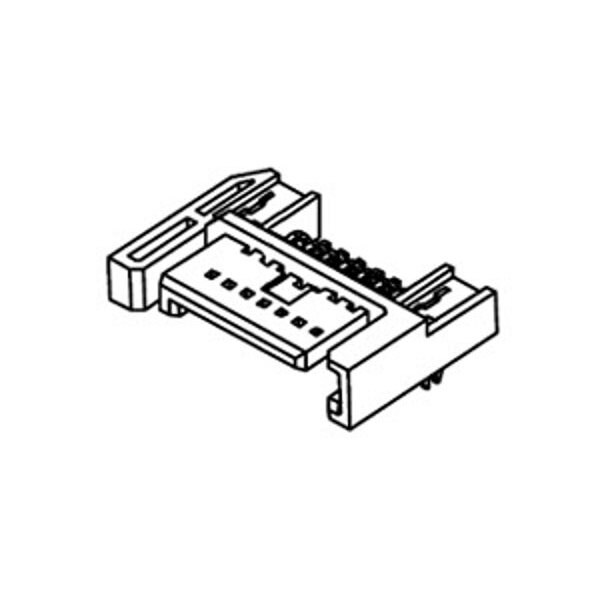

Conector de telecomunicaciones y datos, 7 contactos, macho, ángulo recto, terminal de montaje superficial, ranura de guía.
| Application | Board-to-Board, Signal, Wire-to-Board |
|---|---|
| Series | 67490 |
| Material - Plating Termination | Tin |
| Breakaway | No |
| Material - Resin | High Temperature Thermoplastic |
| Circuits (Loaded) | 7 |
| First Mate / Last Break | Yes |
| Color - Resin | Black |
| Temperature Range - Operating | -35° to +85°C |
| Lock to Mating Part | No |
| Number of Rows | 1 |
| Current - Maximum per Contact | 1.5 A |
| Durability (mating cycles max) | 50 |
| Keying to Mating Part | Yes |
| Orientation | Right Angle |
| PCB Locator | No |
| Material - Plating Mating | Gold |
| Glow-Wire Capable | No |
| PCB Thickness - Recommended | 1.6 mm |
| Max-Cycle | 1 |
| PCB Retention | Yes |
| Max-Temp | 255 |
| Voltage - Maximum | 15 V |
| Shrouded | No |
| Pitch - Mating Interface | 1.27 mm |
| Component Type | PCB Header |
| Plating min - Mating | 0.051 um |
| Max-Duration | 3 |
| Polarized to Mating Part | No |
| Guide to Mating Part | Yes |
| UL | E29179 |
| Termination Interface Style | Surface Mount |
| Stackable | No |
| Flammability | 94 V to 0 |
| Product Name | Serial ATA |
| Package Quantity | 1 |
