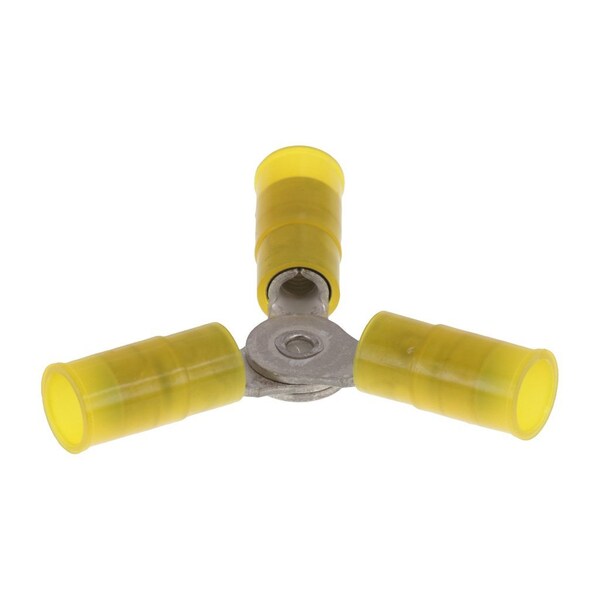

Terminales de 3 vías Avikrimp (C-5Y)
| Material - Metal | Copper |
|---|---|
| Material - Plating Termination | Tin |
| Barrel Type | Closed |
| Product Name | Avikrimp, 3 Way |
| Series | 19204 |
| Wire Insulation Diameter | 5.72 mm max. |
| Voltage - Maximum | 600 V |
| Color - Resin | Natural |
| Plating min - Mating | 2.54 um |
| Material - Plating Mating | Tin |
| Wire Size (AWG) | 10, 12 |
| Material - Resin | Nylon |
| Insulation | Nylon |
| Temperature Range - Operating | -55° to +105°C |
| Package Quantity | 1 |
