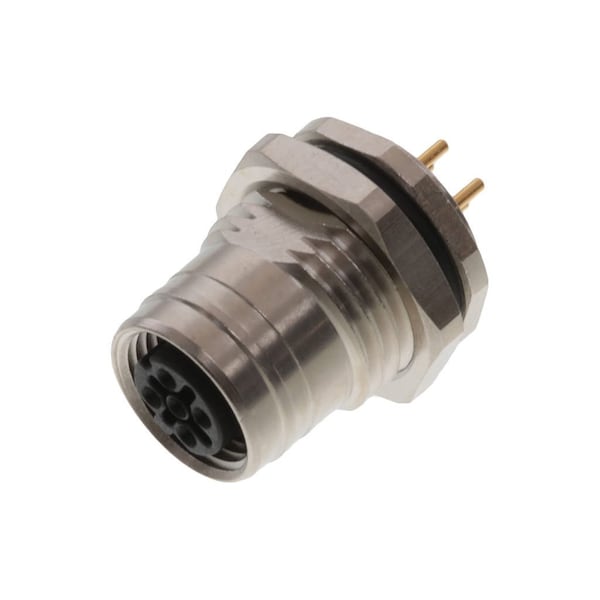

UL-M12-4P(D)-FEMALE REC-PCB MT
| NEMA Rating | NEMA 6 |
|---|---|
| Length | 0.022 m |
| Temperature Range - Operating | -20°C to +75°C |
| Gender | Female |
| Keyway | D-coded |
| Coupling Type | Internal Thread |
| Current - Maximum per Contact | 4 A |
| Mounting Thread Size | M16 |
| Poles | 4 |
| Orientation | Straight |
| Voltage - Maximum | 250 V |
| Material - Component | Nickel-plated Brass |
| IP Rating | IP67 |
| Product Name | Ultra-Lock |
| Series | 120109 |
| Type | PCB Mount |
| Package Quantity | 1 |
