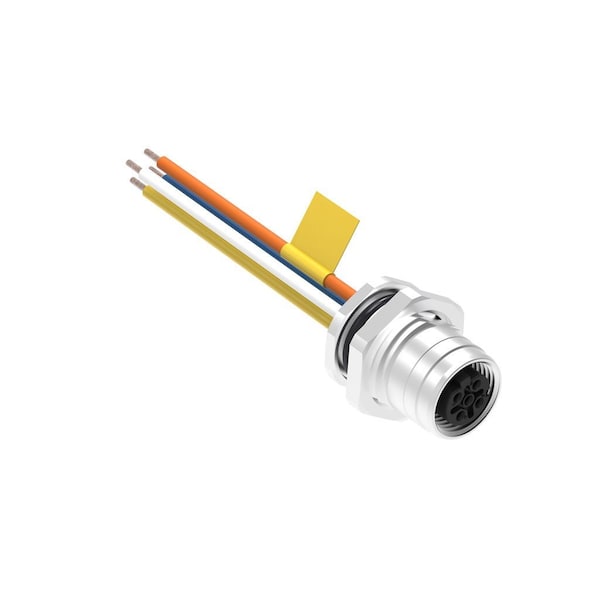

UL-M12-4P(D)-FEREC-50mm-PVC
| NEMA Rating | NEMA 6 |
|---|---|
| Length | 0.05 m |
| Poles | 4 |
| Material - Component | Nickel-plated Brass |
| Mounting Thread Size | M16 x 1.5 |
| Gender | Female |
| Wire Size AWG | 22 |
| Orientation | Straight |
| Keyway | D-coded |
| Temperature Range - Operating | -10°C to +80°C |
| Coupling Type | Internal Thread |
| Current - Maximum per Contact | 1.5 A |
| Voltage - Maximum | 125 V |
| IP Rating | IP67 |
| Product Name | Ultra-Lock |
| Series | 120109 |
| Type | Single Ended |
| Package Quantity | 1 |
