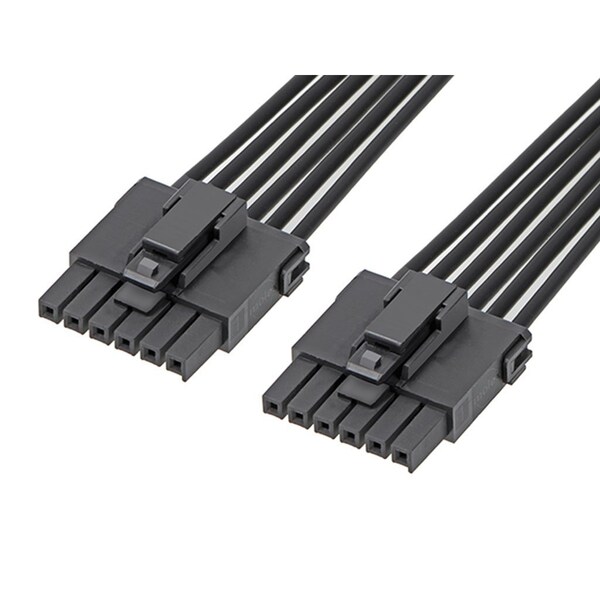

Ultra-Fit Sr R-R 6Ckt 300Mm Disc Sn
| Type | Discrete Wire Assembly |
|---|---|
| Application | Power, Wire-to-Board |
| Cable Length | 300 mm |
| Series | 217465 |
| Wire Size AWG | 16 |
| Color - Resin | Black |
| Material - Plating Termination | Tin |
| Plating min - Termination | 1.524 um |
| Material - Plating Mating | Tin |
| Lock to Mating Part | Yes |
| Material - Metal | High Conductivity Copper |
| Termination Interface: Style | Compression, Crimp |
| Material - Resin | Nylon |
| Wire/Cable Type | UL 1061 |
| Voltage - Maximum | 600V AC (RMS)/DC |
| Pitch - Mating Interface | 3.5 mm |
| Circuits (Loaded) | 6 |
| Wire Insulation Diameter | 2.03-2.39mm |
| Current - Maximum per Contact | 14 A |
| Number of Rows | 1 |
| Gender | Female-Female |
| Plating min - Mating | 1.524 um |
| Single Ended | No |
| Assembly Configuration | Dual Ended Connectors |
| Overmolded | No |
| Product Name | Ultra-Fit |
| Connector to Connector | Ultra-Fit-to-Ultra-Fit |
| Package Quantity | 1 |
