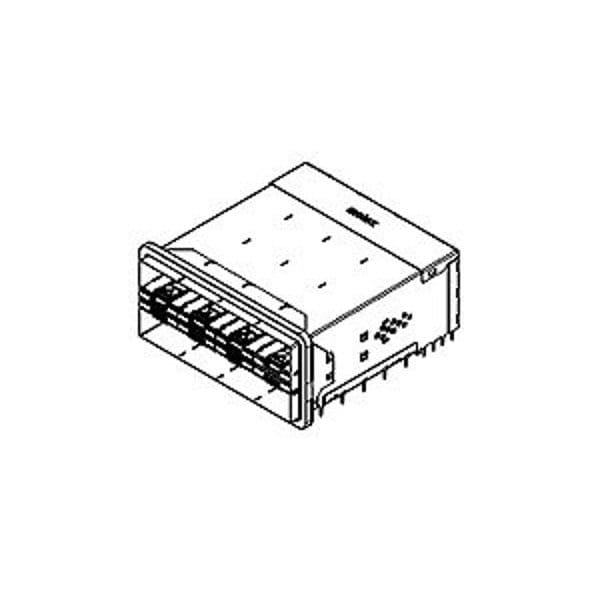

Ensamble Apilado y Alineado Zsfp+ con Junta Elastomérica, 2-En-1 con 4 Puntas de Luz
| Max. Voltage | 30 V AC |
|---|---|
| Application | Module-to-Board |
| Series | 170071 |
| Standards | UL E29179 |
| Current Rating | 0.5 A |
| Material | High Temperature Thermoplastic |
| Terminal Type | Through Hole - Compliant Pin |
| Contact Plating Thickness | 0.762 µm |
| Number of Rows | 2 |
| Color | Black |
| Number of Ports | 2 |
| Contact Finish | Gold Plated |
| Hole Center to Center | 0.8 mm |
| Connector Type | Female |
| Flammability Rating | UL 94V-0 |
| Max. Temp. | 85 deg C |
| Number of Contacts | 40 |
| Terminal Finish | Matte Tin Plated |
| Polarized to PCB | Yes |
| Material - Resin | High Temperature Thermoplastic |
| Pitch - Mating Interface | 0.8 mm |
| Data Rate | 28 Gbps |
| Lock to Mating Part | Yes |
| Flammability | 94 V to 0 |
| PCB Retention | Yes |
| Component Type | Receptacle |
| Shielded | Yes |
| Product Name | zSFP Plus, zSFP+ |
| Polarized to Mating Part | Yes |
| Circuits (Loaded) | 40 |
| PCB Locator | Yes |
| Plating min - Mating | 0.762 um |
| PCB Thickness - Recommended | 2.36 mm |
| Durability (mating cycles max) | 100 |
| Material - Plating Termination | Matte Tin |
| Orientation | Right Angle |
| Temperature Range - Operating | -40° to +85°C |
| Material - Metal | High Performance Alloy |
| Material - Plating Mating | Gold |
| Current - Maximum per Contact | 0.5 A |
| UL | E29179 |
| Package Quantity | 1 |
