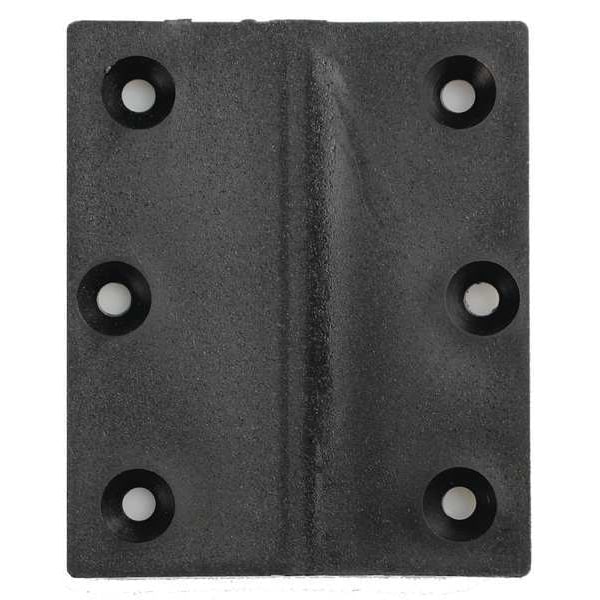

Door and Butt Hinge, Plastic, Surface Mounting, 2 1/2 in Leaf W x 3 in Leaf H, Black Enamel
| Corners | Square |
|---|---|
| Door Leaf Height | 3 in |
| Door Leaf Thickness | 0.168 in |
| Door Leaf Width | 2-1/2 in |
| Finish | Black Enamel |
| Holes per Leaf | 3 |
| Load Capacity | 360 lb |
| Material | Plastic |
| Mounting | Surface |
| Orientation | Non Handed |
| Range of Motion | 270 deg |
| Features | UV Protection |
| Item | Door and Butt Hinge |
| Frame Leaf Height | 3 in |
| Frame Leaf Width | 2-1/2 in |
| Frame Leaf Thickness | 0.168 in |
| Hardware | Not included |
| Ligature Resistant | No |
| Holes | With |
| Overall Width | 2-1/2 in |
| Hinge Number | Not Applicable |
| Hand Orientation | Non-Handed |
| ANSI/BHMA Finish | Painted |
| Includes Hardware | Hardware Not Included |
| Resistance Properties | Corrosion-Resistant |
| Range of Motion - Maximum | 270 deg |
| Door Thickness - Minimum | Not Applicable |
| Mounting Style | Full Surface |
| Corner Type | Square |
| Number of Holes per Leaf | 3 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
