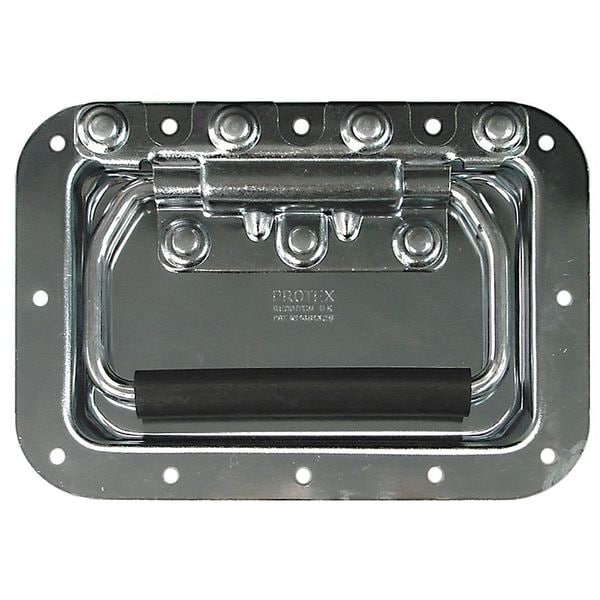

Load Rated Fold Pull Handle, Steel, Polished Zinc, Unthr. Holes
| Finish | Zinc Plated |
|---|---|
| Color | Silver |
| Material | Steel |
| Mounting Type | Unthreaded Through Holes |
| Item | Folding Pull Handle |
| Grip Dia. | 19/32 in |
| Load Rated (Y/N) | Y |
| Overall Width | 4-1/2 in |
| Cutout Width | 4-25/32 in |
| Hardware | Not Included |
| Vert. Mounting Hole Ctr. to Ctr. | 4-1/2 in |
| Plate Thickness | 3/64 in |
| Screw Size | #10 |
| Mounting Hole Center to Center | 6 in |
| Operating Temp. | -4 to 140 deg F |
| Cutout Height | 3-9/32 in |
| Load Capacity | 176 lb |
| Grip Thickness | Not Applicable |
| For Use With | Doors, Drawers |
| Degree Offset | Not Applicable |
| Overall Length | 6 in |
| Grip Shape | Round |
| Projection Type | Non-Recessed |
| Folding Type | Folding |
| Mounting Hole Center to Center - Vertical | 4-1/2 in |
| Operating Temperature - Maximum | 140 deg F |
| Includes Plate | Plate Included |
| For Industry | Industrial, Residential |
| Handle Shape | Ring |
| ANSI/BHMA Finish | Zinc-Plated |
| Grip Width | Not Applicable |
| Standards | AS9100D, ISO 9001:2015 |
| Load Capacity - Parallel | 176 lbf |
| Load Rating | Load Rated |
| Operating Temperature - Minimum | -4 deg F |
| Cutout Length | 3-9/32 in |
| Grip Diameter | 19/32 in |
| Count | 1 |
| Load Capacity - Perpendicular | 176 lbf |
| Cutout Depth | 3-9/32 in |
| Number of Mounting Holes | 12 |
| Product Type | Pull Handle |
| Includes Hardware | Hardware Not Included |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
