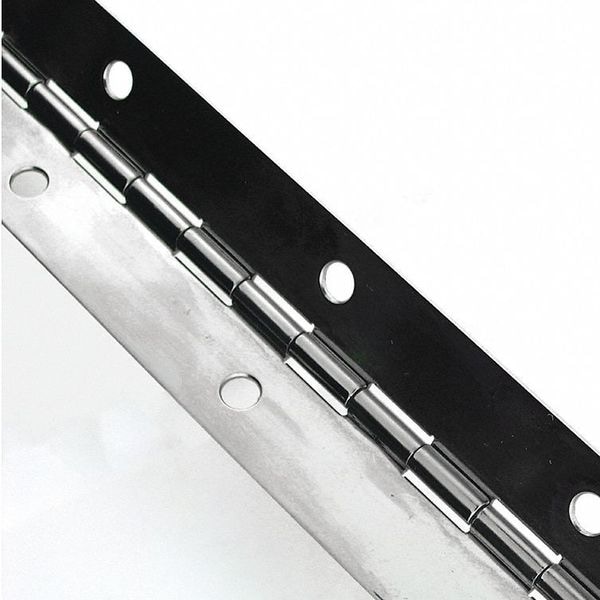

Piano Hinge, Stainless Steel, Full Surface Mounting, 2 in Leaf W x 72 in Leaf H, Mill
| Item | Piano Hinge |
|---|---|
| Material | Stainless Steel |
| Mounting | Full Surface |
| Range of Motion | 270 deg |
| Ligature Resistant | No |
| Finish | Mill |
| Holes per Leaf | 36 |
| Holes | With |
| Door Leaf Width | 2 in |
| Door Leaf Height | 72 in |
| Door Leaf Thickness | 0.06 in |
| Frame Leaf Width | 2 in |
| Frame Leaf Height | 72 in |
| Frame Leaf Thickness | 0.06 in |
| Overall Width | 2 in |
| Pin Material | Stainless Steel |
| Pin Type | Removable |
| Features | 1/2" Knuckle Length; #6 Hole Size |
| Overall Knuckle Height | 1/2 in |
| Required Door Thickness | 2 in |
| Hardware | Not included |
| Orientation | Non Handed |
| Pin Dia. | 1/8 in |
| Hole Spacing | 2 in |
| Hand Orientation | Non-Handed |
| Removable Pin | No |
| Pin Diameter | 1/8 in |
| Includes Hardware | Hardware Not Included |
| Resistance Properties | Corrosion-Resistant |
| Number of Holes per Leaf | 36 |
| ANSI/BHMA Finish | Bright Stainless Steel |
| Range of Motion - Maximum | 270 deg |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
