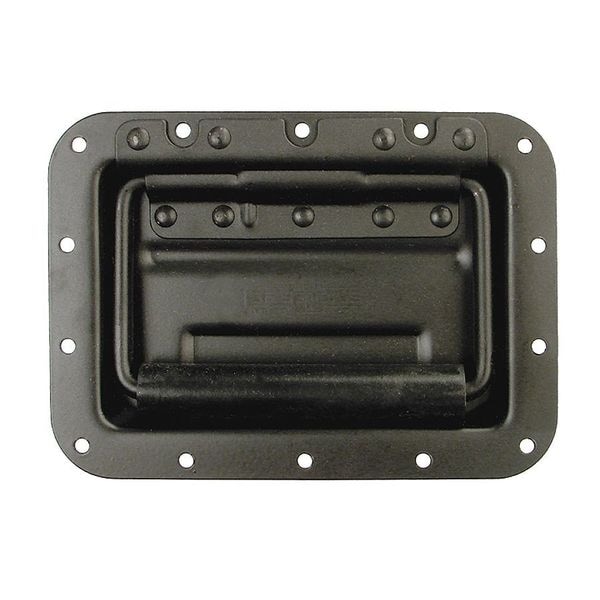

Recessed Folding Pull Handle, Steel, Unthr. Through Holes
| Finish | Dull |
|---|---|
| Color | Black |
| Material | Steel |
| Mounting Type | Unthreaded Through Holes |
| Projection | 21/32 in |
| Item | Recessed Folding Pull Handle |
| Vert. Mounting Hole Ctr. to Ctr. | 5 in |
| Hardware | Not Included |
| Cutout Width | 5-3/4 in |
| Cutout Height | 3-29/32 in |
| Operating Temp. | -40 to 150 deg F |
| Screw Size | #10 |
| Overall Width | 5 in |
| Load Rated (Y/N) | N |
| Grip Dia. | 3/4 in |
| Mounting Hole Center to Center | 3-3/4 in |
| Shape | Rectangle |
| Grip Thickness | Not Applicable |
| Overall Length | 7 in |
| Degree Offset | Not Applicable |
| Cutout Depth | 3-29/32 in |
| Handle Shape | Ring |
| Grip Shape | Round |
| Count | 1 |
| Projection Type | Recessed |
| Grip Diameter | 3/4 in |
| Folding Type | Folding |
| Operating Temperature - Maximum | 150 deg F |
| Includes Plate | Plate Included |
| Load Rating | Load Rated |
| Grip Width | Not Applicable |
| Operating Temperature - Minimum | -40 deg F |
| Number of Mounting Holes | 8 |
| Includes Hardware | Hardware Not Included |
| Cutout Length | 3-29/32 in |
| Mounting Hole Center to Center - Vertical | 5 in |
| ANSI/BHMA Finish | Satin Steel |
| Product Type | Pull Handle |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
