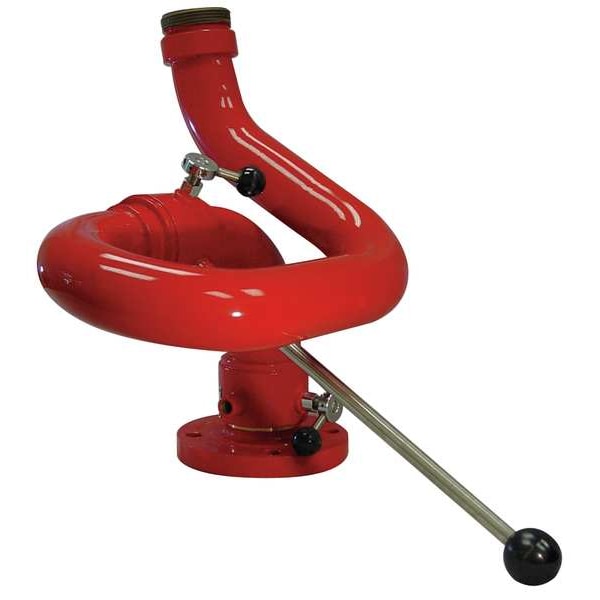

Monitor, 750 gpm, Tiller Control
| Item | Monitor |
|---|---|
| Material | Brass |
| Includes | Positive Twist Locks for Vertical and Horizontal Movements |
| Standards | FM |
| Horizontal Travel | 360 Degrees |
| Waterway | 2 1/2 in |
| Outlet | 2-1/2 in M NHT |
| Mounting | 3 in 150 lb ANSI Flange |
| Max. Flow | 750 gpm |
| Inlet | 3 in Flange |
| Max. Pressure | 100 psi |
| Vertical Travel | 135 Degrees (90 Degrees Above), 45 Degrees Below Horizontal) |
| Control | Tiller |
| Product Type | Monitor |
| Waterway Diameter | 2-1/2 in |
| Maximum Pressure | 100 psi |
| Inlet Fitting Type | 3 in Flange |
| Maximum Flow Rate | 750 gpm |
| Outlet Fitting Type | 2-1/2 in M NHT |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
