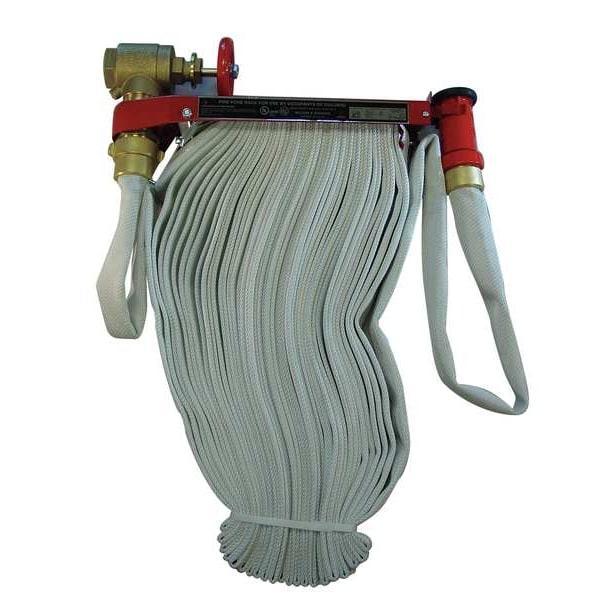

Pin Rack Assembly, Plastic Nozzle, 75 Ft
| Item | Fire Hose Pin Rack Assembly |
|---|---|
| Includes | Pin Rack, 1-1/2" Valve, Rack Nipple, Hose and Nozzle |
| Standards | FM, UL, ULC |
| Fire Hose Type | Single Jacket |
| Jacket Material | Polyester |
| Working Pressure | 250 psi |
| Proof Test Pressure | 500 psi |
| Nozzle Material | Plastic |
| Unit Width | 5" |
| Thread Type | NH, NST |
| Color | White |
| UL Listed | Yes |
| Fire Hose Product Group | Fire Hose Pin Rack Assembly |
| Coupling Lug Style | Pin/Rocker |
| Service Test Pressure | 250 psi |
| Coupling Material | Brass |
| FM Approved | Yes |
| Lining Material | Rubber |
| Overall Height | 28 in |
| Overall Width | 4 in |
| Temp. Range | -65 Degrees to 150 Degrees F |
| Length | 75 ft |
| Hose Capacity | 75 ft |
| Overall Length | 20 in |
| Height | 22 in |
| Finish | Red Enamel |
| Hose Fitting B Size | 1 1/2 in |
| Hose Reinforcement Material | Fiber |
| Hose Fitting A Type | FNST |
| Hose Fitting B Material | Brass |
| Hose Cover Material | Polyester |
| Hose Configuration | Coupled Assembly |
| Hose Fittings | Brass 1-1/2 in FNST x Brass 1-1/2 in MNST |
| Hose Fitting A Material | Brass |
| Hose Fitting B Type | MNST |
| Safety Factor | 3:1 |
| Hose Fitting A Size | 1 1/2 in |
| Hose Tube Material | Polyurethane |
| Max. Working Pressure @ 70 F | 250 psi |
| Burst Pressure | 500 psi |
| Fitting Size | 1-1/2 in x 1-1/2 in |
| Fitting Material | Brass x Brass |
| Fitting Type | FNST x MNST |
| Compatible Chemicals | Air, Fresh Water |
| Not Recommended Chemicals | Acetic Acid 80%, Acetone, Ammonia (Liquids), Anhydrous Ammonia, Automatic Transmission Fluid, Brake Fluid, Chromic Acid 30%, Chromic Acid 50%, Diesel Fuel, Ethyl Acetate, Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fuel Oil, Gasoline, Heptane, Hexane, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Kerosene, Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Turpentine, Vegetable Oil, Xylene |
| For Media Type | Air, Water |
| Hose Inside Diameter | 1 1/2 in |
| Maximum Working Pressure at 70F | 250 psi |
| Operating Temperature Range | -65 Degrees to 150 Degrees F |
| Includes Fire Hose | Yes |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
