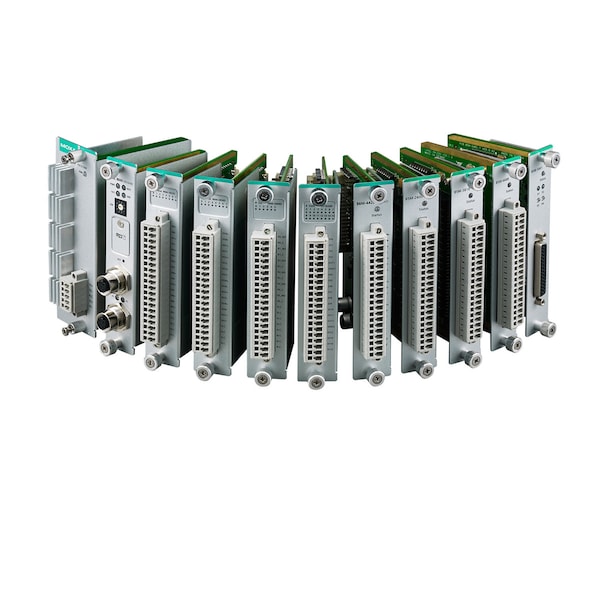

16 Dis, Sink/Source, 24-110 Vdc, Channel Led, -40 To 75°C
| Connector | Spring-type terminal block |
|---|---|
| Type | PNP |
| Debouncing Time | 1 to 15 ms (software-selectable) |
| Isolation | To system: 3k VDC or 2k Vrms |
| Logic Definition | On: channel voltage > 0.3 x (external power voltage); Off: channel voltage < 0.15 x (external power voltage) |
| Scan on Time | 0.5 ms |
| Operating temperature | -40 to 75°C (-40 to 176°F) |
| Common Type | COM, 8 points |
| Channel LED | Yes |
| Digital Inputs | 16 channels |
| Wiring | I/O cable, 16 AWG (max.) |
| Time | 1,115,244 hrs |
| Debouncing Function | Software disable/enable |
| Input Current | 12.6 mA @ 24 VDC |
| Scan Period | 8 ms (typ.) |
| Standard | Telcordia SR332 |
| I/O Mode | DI |
| Package Quantity | 1 |
