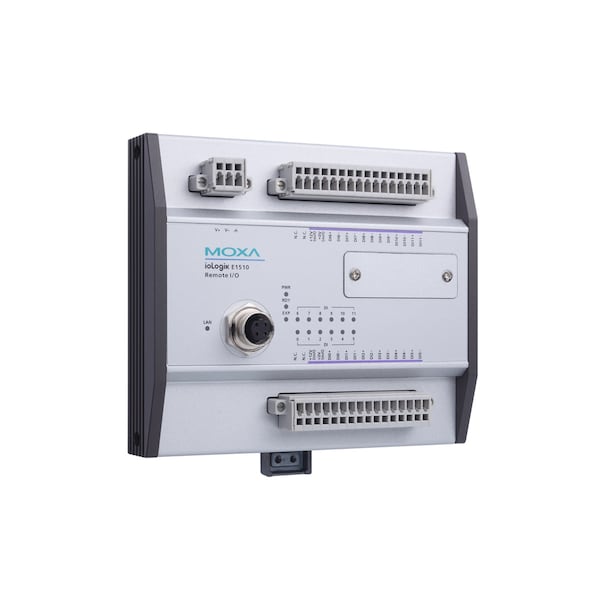

Ethernet Remote I/O, M12 Connector, 12 Dis, -40 To 85°C Operating
| Mounting | DIN Rail, wall |
|---|---|
| Power Input | 24 VDC nominal, 12 to 48 VDC |
| EMS | EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4; EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11; EN 61000-6-2 |
| Dry Contact | On: short to GND; Off: open |
| Wet Contact (DI to GND) | On: 0 to 3 VDC; Off: 10 to 30 VDC |
| Operating temperature | -40 to 85°C (-40 to 185°F) |
| Wiring | I/O cable max. 14 AWG |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Protocols | Modbus/TCP, TCP/IP, UDP, DHCP, BOOTP, HTTP |
| I/O Mode | DI or Event Counter |
| Altitude | Up to 2,000 m |
| Rail Traffic | EN 50155*, EN 50121-3-2, EN 50121-4 |
| Digital Inputs | 12 channels (channel-to-channel isolation) |
| Protection | 1.5 KV magnetic isolation |
| Digital Filtering Time Interval | Software Configurable; (minimum: 1 millisecond) |
| Vibration | IEC 60068-2-6 |
| Power Consumption | 163 mA @ 24 VDC |
| Safety | UL 508 |
| Counter Frequency | 250 Hz |
| Dimensions | 144 x 124 x 30 mm (5.67 x 4.88 x 1.18 in) |
| Sensor Type | Wet Contact (NPN or PNP), Dry Contact |
| Shock | IEC 60068-2-27 |
| EMI | EN 61000-3-2, EN 61000-3-3, EN 61000-6-4, FCC Part 15 Subpart B Class A |
| Isolation | 3K VDC or 2K Vrms |
| Ethernet | 1 10/100 Mbps, M12 |
| Storage temperature | -40 to 85°C |
| Freefall | IEC 60068-2-32 |
| Package Quantity | 1 |
