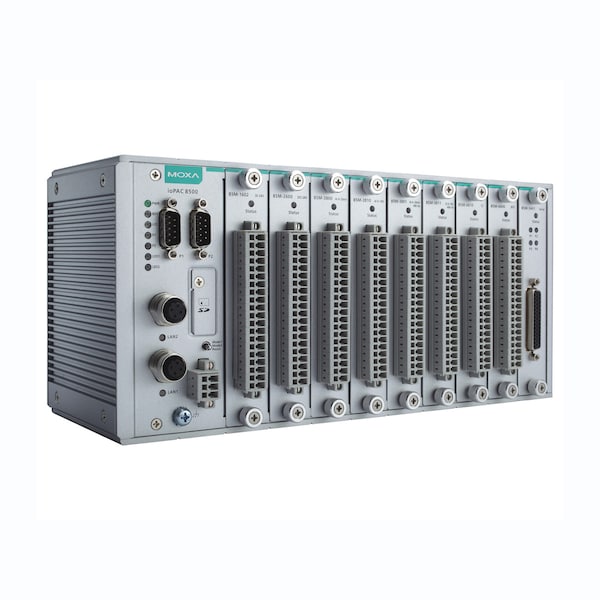

Iopac 85Xx I/O Module, 16 Dis, 24 Vdc Sink/Source Type, -40 To 75°C
| Digital Inputs | 16 channels |
|---|---|
| Isolation | 3K VDC or 2K Vrms |
| I/O Mode | DI or event counter |
| Wiring | I/O cable, max. 16 AWG |
| Counter Frequency | 5 kHz |
| Power Consumption | 1.2 W @ 3.3 VDC |
| Sensor Type | Wet contact (NPN or PNP), dry contact |
| Connector | Spring type terminal block |
| Database | Telcordia (Bellcore) |
| Time | 1,132,561 hrs |
| Operating temperature | -40 to 75°C |
| Dry Contact | On: short to GND; Off: open |
| Digital Filtering Time Interval | Software selectable (by 0.1 ms) |
| Common Type | COM, 8 points |
| Wet Contact (DI to GND) | NPN (DI to GND): On: 0 to 3 VDC; Off: 10 to 30 VDC; PNP (DI to GND): Off: 0 to 3 VDC; On: 10 to 30 VDC |
| Package Quantity | 1 |
