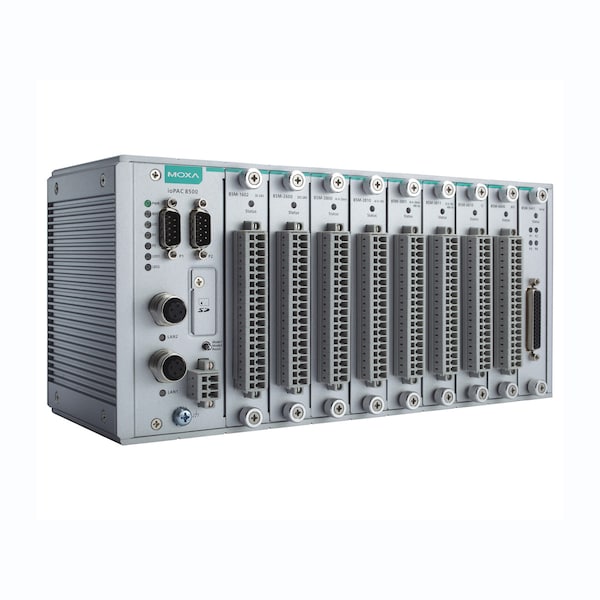

Iopac 85Xx I/O Module, 16 Dos, 24 Vdc Sink Type, -40 To 75°C
| Isolation | 3K VDC or 2K Vrms |
|---|---|
| Digital Outputs | 16 channels |
| Power Consumption | 0.85 W @ 3.3 VDC |
| Wiring | I/O cable, max. 16 AWG |
| Time | 792,571 hrs |
| Over-current Protection | 2.6 A |
| Connector | Spring type terminal block |
| Operating temperature | -40 to 75°C |
| Database | Telcordia (Bellcore) |
| Over-temperature Shutdown | 175°C (typical), 150°C (min.) |
| Pulse Output Frequency | 5 kHz |
| Type | Sink |
| Over-voltage Protection | 45 VDC |
| Current Rating | 200 mA per channel |
| I/O Mode | DO or pulse output |
| Package Quantity | 1 |
