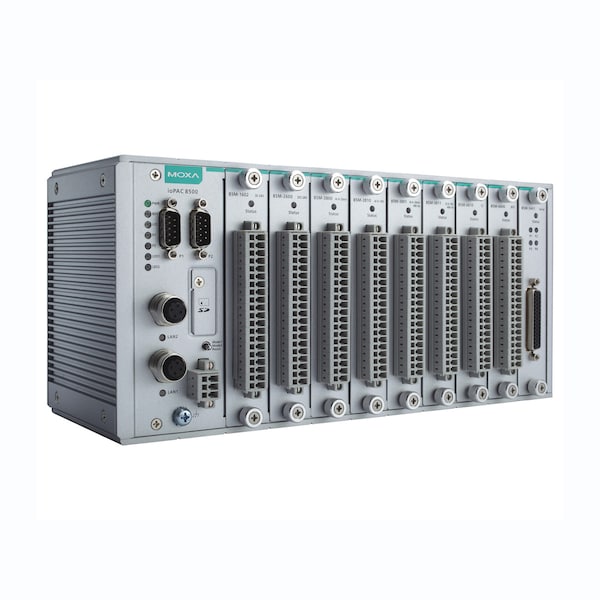

Iopac 85Xx I/O Module, 6 Rtds, -40 To 75°C Operating Temperature
| Standards | Telcordia SR332 |
|---|---|
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV; IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m; IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV; IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV; IEC 61000-4-6 CS: 10 V; IEC 61000-4-8 PFMF |
| RTD Channels | 6 |
| Pulse Output Frequency | 5 kHz |
| EMC | EN 55032/24, EN 61000-6-2/-6-4 |
| Sensor Type | JPT100, JPT200, JPT500 (-200 to 640°C); JPT1000 (-200 to 350°C); NI100, NI50, NI500 (-60 to 250°C); NI1000 (-60 to 150°C); NI120 (-80 to 260°C); PT1000 (-200 to 350°C); PT50, PT100, PT200, PT500 (-200 to 850°C); Resistance of 310, 620, 1250, and 2200 ohms |
| Altitude | 2,000 m |
| Wiring | I/O cable, 14 to 28 AWG |
| Dimensions | 25 x 128.2 x 85.5 mm (0.98 x 5.05 x 3.37 in) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Operating temperature | -40 to 75°C (-40 to 167°F) |
| EMI | CISPR 32, FCC Part 15B Class A |
| Power Consumption | 27.7 mA @ 24 VDC |
| Safety | UL 508 |
| Input connection | 625 kilo-ohms (min.) |
| Shock | IEC 60068-2-27 |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Time | 571,446 hrs |
| Isolation | 3k VDC or 2k Vrms |
| Accuracy | ±0.1% FSR @ 25°C; ±0.3% FSR @ -40 to 75°C |
| Connector | Spring-type Euroblock terminal |
| Vibration | IEC 60068-2-6 |
| Sampling Rate | All channels: 12 samples/sec; Per channel: 2 samples/sec |
| Resolution | 0.1°C or 0.1 ohms |
| Package Quantity | 1 |
