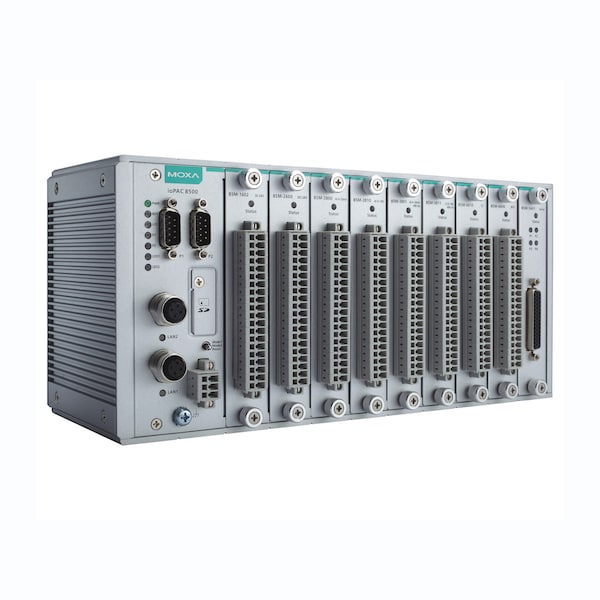

Iopac 85Xx I/O Module, 8 Ais, 0 To 10 V, -40 To 75°C
| Power Consumption | 1.04 W @ 3.3 VDC |
|---|---|
| Type | Differential |
| Sampling Rate | All channels: 100 samples/sec; Per channel: 12.5 samples/sec |
| Time | 1,530,690 hrs |
| Isolation | 3K VDC or 2K Vrms |
| Wiring | I/O cable, max. 16 AWG |
| Database | Telcordia (Bellcore) |
| Connector | Spring type terminal block |
| I/O Mode | 0 to 10 VDC |
| Input Impedance | 200 k-ohms (min.) |
| Accuracy | ±0.1% FSR @ 25°C; ±0.3% FSR @ -40 and 75°C |
| Resolution | 16 bits |
| Operating temperature | -40 to 75°C |
| Analog Inputs | 8 channels |
| Package Quantity | 1 |
