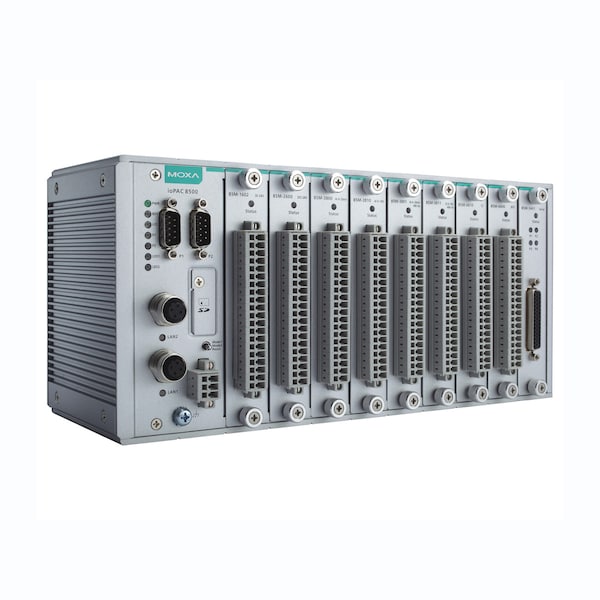

Módulo de E/S Iopac 85Xx con 8 Tcs, temperatura de operación de -40 a 75°C.
| Millivolt Type | Mode: ±78.126 mV, ±39.062 mV, ±19.532 mV; Fault and over-voltage protection: -35 to +35 VDC; (power off); -25 to +30 VDC (power on) |
|---|---|
| Accuracy | ±0.1% FSR @ 25°C; ±0.3% FSR @ -40 and 75°C |
| Isolation | 3K VDC or 2K Vrms |
| Wiring | I/O cable, max. 16 AWG |
| Input Impedance | 1 Mohms (min.) |
| Resolution | 16 bits |
| Sensor Type | J (0 to 750°C), K (-200 to 1250°C); T (-200 to 350°C), E (-200 to 900°C), R (-50 to 1600°C), S (-50 to 1760°C), B (600 to 1700°C); N (-200 to 1300°C) |
| Analog Inputs | 8 channels |
| Sampling Rate (single channel) | All channels: 12 samples/sec; Per channel: 1.5 samples/sec |
| Operating temperature | -40 to 75°C |
| Connector | Spring type terminal block |
| Package Quantity | 1 |
