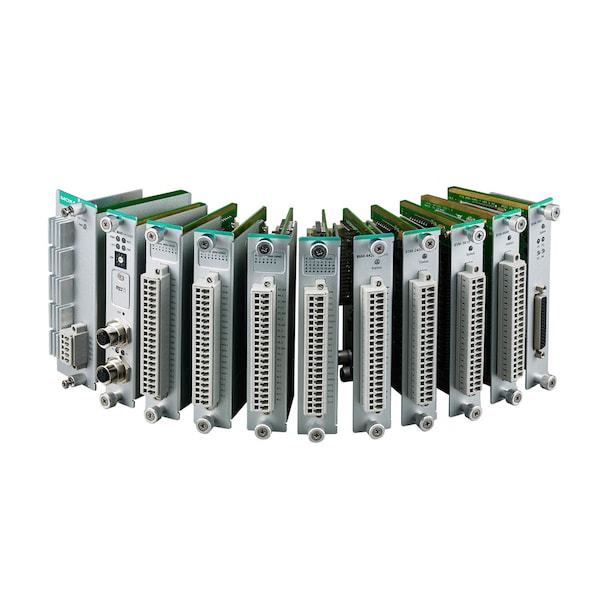

Iopac 8600 Backplane Modules I/O Slots, -40 To 75°C Operating
| Input Voltage | 24 to 110 VDC |
|---|---|
| Clock | Real-time clock with capacitor backup |
| Standards | Telcordia SR332 |
| Slots | ioPAC 8600-BM005: 5; ioPAC 8600-BM009: 9; ioPAC 8600-BM012: 12 |
| Language | C/C++, IEC 61131-3 |
| OS | Real-time Linux (PREEMPT_RT) |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV; IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m; IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV; IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV; IEC 61000-4-6 CS: 10 V; IEC 61000-4-8 PFMF |
| 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector) | M12 version: 2, 1 MAC address (Ethernet bypass) or 2 MAC addresses, jumper selectable |
| Power Connector | Spring-type Euroblock terminal |
| eMMC | 4 GB (1.7 GB reserved for the user) |
| Configuration Options | Windows Utility (RTUxpress) |
| No. of Power Inputs | 2 |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Installation | Wall Mounting |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| SPI-NVRAM | 128 KB |
| Wiring | Power cable, 14 to 28 AWG |
| Operating temperature | -40 to 75°C (-40 to 167°F) |
| SDRAM | 512 MB DDR3(L) |
| 10/100BaseT(X) Ports (RJ45 connector) | RJ45 version: 2, 1 MAC address (Ethernet bypass) or 2 MAC addresses, jumper selectable |
| EMC | EN 55032/24, EN 61000-6-2/-6-4 |
| Galvanic Isolation | 3k VDC |
| Safety | UL 508 |
| Time | ioPAC 8600-CPU30 Series: 1,358,656 hrs; ioPAC 8600-PW10-15W-T: 1,752,960 hrs; ioPAC 8600-PW10-30W-T: 1,341,777 hrs |
| Mode | Master, Slave |
| Vibration | IEC 60068-2-6 |
| Altitude | 2,000 m |
| Housing | Metal |
| Shock | IEC 60068-2-27 |
| Industrial Protocols | Modbus TCP Client (Master), Modbus TCP Server (Slave), Moxa AOPC (Active Tag), SNMPv1/v2c Trap, SNMPv1/v2c/v3 |
| microSD Slot | Up to 32 GB (SD 2.0 compatible) |
| Security | SSH |
| Power Consumption | 223 mA @ 24 VDC |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| CPU | 32-bit Cortex-A8 1 GHz CPU |
| Functions Supported | 1, 2, 3, 4, 5, 6, 15, 16 |
| Dimensions | ioPAC 8600-BM005: 205.65 x 133.35 x 100 mm (8.1 x 5.25 x 3.94 in) ; ioPAC 8600-BM009: 324.8 x 133.35 x 100 mm (12.79 x 5.25 x 3.94 in); ioPAC 8600-BM012: 436.8 x 132.2 x 100 mm (17.19 x 5.2 x 3.94 in) |
| Time Management | SNTP |
| Management | BOOTP, IPv4, SMTP, UDP, TCP/IP |
| Console Port | RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1) |
| EMI | CISPR 32, FCC Part 15B Class A |
| Package Quantity | 1 |
