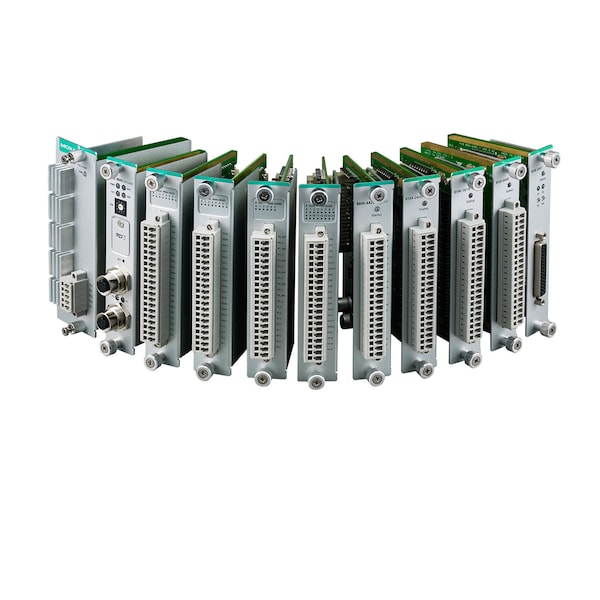

Iopac 8600 I/O Module, 4 Analog Outputs, 0 To 10 V Or -10 To 10 V
| Waveform Type | Sine, Triangle, Square |
|---|---|
| Resolution | 12 bits |
| Accuracy | ±0.1% FSR @ 25°C; ±0.3% FSR @ -40 and 75°C |
| Analog Outputs | 4 channels |
| Voltage Output | 10 mA (max.) |
| Current Load Resistance | Internal Power: 400 ohms; External 24 VDC Power: 1000 ohms |
| Standard | Telcordia SR332 |
| I/O Mode | Static or Waveform mode |
| Input Current | 94.2 mA @ 24 VDC (voltage); 143.8 mA @ 24 VDC (current) |
| Isolation | To system: 3k VDC or 2k Vrms |
| Output Range | 0 to 10 V, -10 to 10 V, 0 to 20 mA, 4 to 20 mA |
| Operating temperature | -40 to 75°C (-40 to 176°F) |
| Wiring | I/O cable, 16 AWG (max.) |
| Time | 2,409,345 hrs |
| Connector | Spring-type terminal block |
| Update Rate | Software polling or waveform mode |
| Wavemode Frequency | 125 Hz |
| Package Quantity | 1 |
