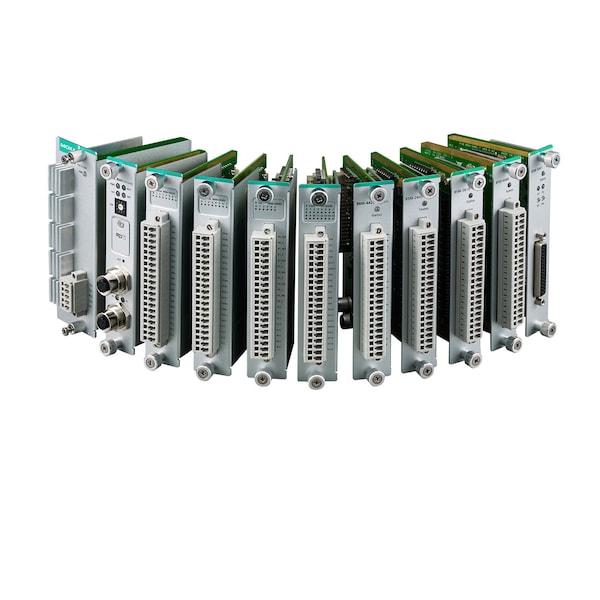

Iopac 8600 I/O Module, 6 Relays, Channel Led, Form A (N.O.) Type
| Time | 4,173,843 hrs |
|---|---|
| Standard | Telcordia SR332 |
| Pulse Output Frequency | 0.33 Hz |
| Mechanical Endurance | 5,000,000 operations |
| Type | Form A |
| Electrical Endurance | 60,000 operations @ 5 A resistive load |
| Input Current | 127 mA @ 24 VDC |
| Contact Current Rating | Resistive Load: 5 A @ 30 VDC, 250 VAC |
| Operating temperature | -40 to 75°C (-40 to 176°F) |
| Relay On/Off Time | 10 msec |
| Wiring | I/O cable, 16 AWG (max.) |
| Relays | 6 channels |
| Connector | Spring-type terminal block |
| Contact Resistance | 100 milli-ohms (max.) |
| I/O Mode | DO or PWM |
| Isolation | To System: 3k VDC or 2k Vrms |
| Initial Insulation Resistance | 1,000 |
| Package Quantity | 1 |
