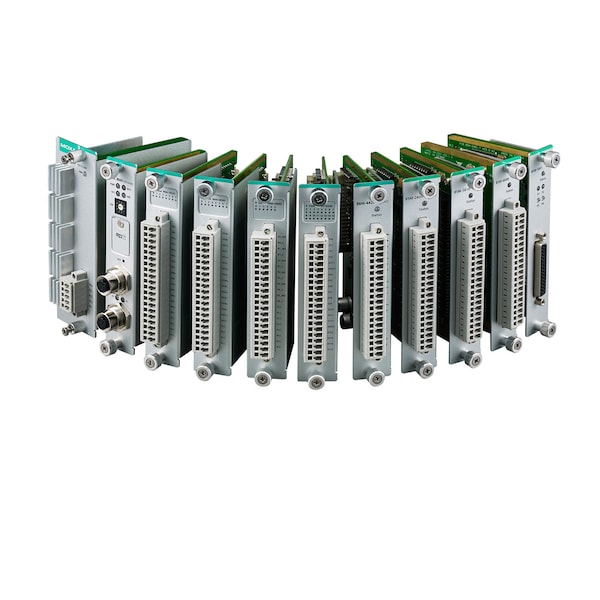

Iopac 8600 I/O Module, 8 Channel To Channel Isolated Dis, 24 Vdc
| Wet Contact (DI+ to DI-) | On: 10 to 30 VDC; Off: 0 to 3 VDC |
|---|---|
| Wiring | I/O cable, 16 AWG (max.) |
| Time | 1,149,108 hrs |
| Digital Filtering Time Interval | Software selectable (by 0.1 ms) |
| Standard | Telcordia SR332 |
| Counter Frequency | 5 kHz |
| Isolation | To system: 3k VDC or 2k Vrms; Channel-to-channel: 1k VDC |
| I/O Mode | DI, counter, or frequency |
| Digital Inputs | 8 channels |
| Operating temperature | -40 to 75°C (-40 to 176°F) |
| Sensor Type | Wet contact (NPN or PNP) |
| Connector | Spring-type terminal block |
| Input Current | 12.6 mA @ 24 VDC |
| Package Quantity | 1 |
