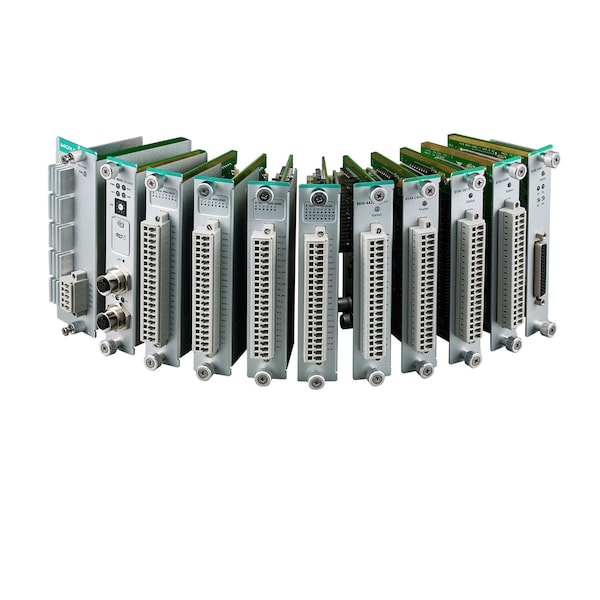

Iopac 8600 I/O Module, 8 Channel To Channel Isolated Dos, 24 Vdc
| Digital Outputs | 8 channels |
|---|---|
| I/O Mode | DO or PWM |
| Connector | Spring-type terminal block |
| Input Current | 76.7 mA @ 24 VDC |
| Short Circuit Protection | 750 mA @ 25°C |
| Isolation | To system: 3k VDC or 2k Vrms; Channel-to-channel: 1k VDC |
| Current Rating | 200 mA per channel |
| Type | Sink |
| Over-current Protection | 2.6 A |
| Over-voltage Protection | 41 VDC |
| Standard | Telcordia SR332 |
| Operating temperature | -40 to 75°C (-40 to 176°F) |
| Pulse Output Frequency | 1 kHz |
| Wiring | I/O cable, 16 AWG (max.) |
| Over-temperature Shutdown | 175°C (typical), 150°C (min.) |
| Time | 1,766,037 hrs |
| Package Quantity | 1 |
