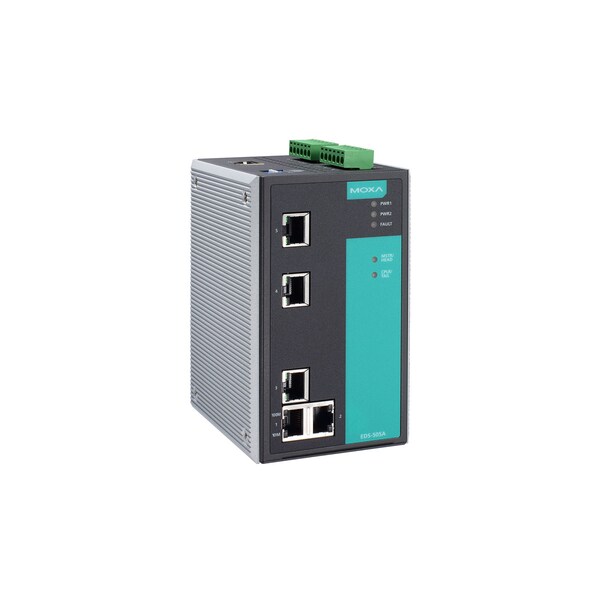

Managed Ethernet Switch W/ 5 10/100BasetXPorts, -40 To 75 Degrees C
| Item | Ethernet Switch |
|---|---|
| Mounting | Rail, Rack, Wall |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.1s, IEEE 802.1x, IEEE 802.1p, IEEE 802.1q, CE, Marine: DNV, GL, Shock: IEC 60068-2-27, Freefall: IEC 60068-2-32, Vibration: IEC 60068-2-6 Safety: UL 508, UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1 Hazardous Location: UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nC IIC EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS: EN 61000-4-2 (ESD) (EDS-505A/508A: Level 3; EDS-516A: Level 2), EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 2, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8 |
| Includes | RJ45 to DB9 Console Port Cable, Protective Caps for Unused Ports, Documentation and Software CD, Hardware Installation Guide, Warranty Card |
| Management | DHCP, RMON, Web-based Management, Telnet, Syslog, SNMP v1/2c/3, MIB, IEEE 802.3x Flow Control, Command Line Interface (CLI), VLAN, QoS |
| Management Port | Yes |
| Network Technology | 10/100Base-TX |
| PoE (RJ-45) Port | No |
| MTBF | 352,000 hr |
| USB | No |
| Redundant Power Supply Supported | No |
| Number of Network (RJ-45) Ports | 5 |
| Manageable | Yes |
| Uplink Port | No |
| Stack Port | No |
| Media Type Supported | Twisted Pair |
| Series | EDS-505A |
| Ethernet Technology | Fast Ethernet |
| Total Number of Network Ports | 5 |
| Power Source | Power Adapter |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
