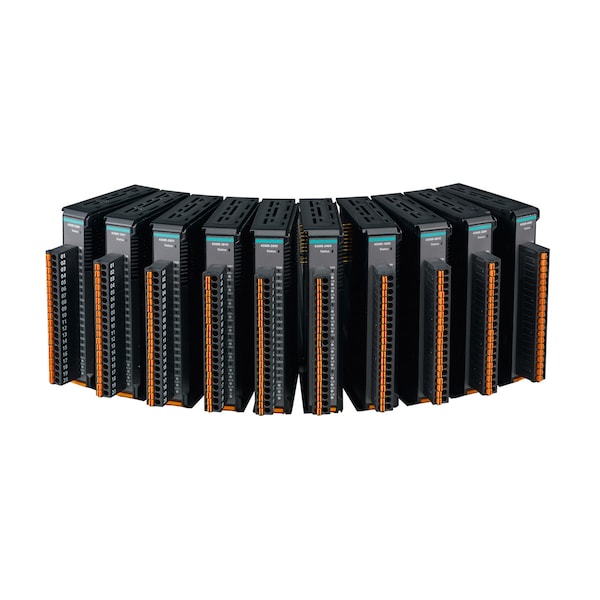

Módulo para la serie Iothinx 4500, entrada de energía de sistema y campo, 45Mr-7210.
| Input Voltage | 45MR-7210: 12 to 48 VDC, 45MR-7210-T: 12 to 48 VDC |
|---|---|
| Standards | Telcordia SR332 |
| Analog Input Channels | 45MR-3800 Series: 8;45MR-3810 Series: 8 |
| Initial Insulation Resistance | 1,000 |
| Channels | 45MR-7820 Series: 8 |
| Wide Temp. Models | -40 to 75°C (-40 to 167°F) |
| Relay Channels | 45MR-2404 Series: 4 |
| Contact Current Rating | Resistive load: 2 A @ 30 VDC;Resistive load: 2 A @ 250 VAC |
| Wiring | I/O cable, 18 to 24 AWG |
| Digital Output Channels | 45MR-2600 Series: 16;45MR-2601 Series: 16;45MR-2606 Series: 8 |
| EMC | EN 55032/24 |
| Current Rating | 500 mA per channel |
| Strip Length | I/O cable, 9 to 10 mm |
| Power | 45MR-7820 Series: 0, 12/24 VDC |
| Resistance Type | 310, 620, 1250, and 2200 ohms |
| Dry Contact | On: short to FP+/FP-;Off: open |
| Dimensions | 19.5 x 99 x 60.5 mm (0.77 x 3.90 x 2.38 in) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) The relays of the 45MR-2404 Series may malfunction when operating in high condensation environments below 0°C. |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Vibration | IEC 60068-2-6 |
| Connector | Spring-type Euroblock terminal |
| Relay On/Off Time | 10 msec |
| Standard Models | -20 to 60°C (-4 to 140°F) |
| Input Impedance | 1 mega-ohms (min.) |
| Thermocouple Channels | 45MR-6810 Series: 8 |
| EMI | CISPR 32, FCC Part 15B Class A |
| Altitude | Up to 4000 meters Please contact Moxa if you require products guaranteed to function properly at higher altitudes. |
| Power Consumption | 45MR-7210: 800 mA @ 12 VDC;45MR-7210-T: 800 mA @ 12 VDC |
| Counter Frequency | 1 kHz |
| RTD Channels | 45MR-6600 Series: 6 |
| Installation | DIN-rail mounting |
| Wet Contact (DI to FP-) | On: 10 to 30 VDC;Off: 0 to 3 VDC |
| IEC 61000-4-4 EFT | 2 kV (Power), 1 kV (Signal) |
| IEC 61000-4-5 Surge | Power: 2 kV; Signal: 1 kV |
| Operating Temperature | Standard Models: -20 to 60°C (-4 to 140°F);Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Isolation | 3k VDC or 2k Vrms |
| Mechanical Endurance | 5,000,000 operations |
| Over-Temperature Shutdown | 175°C (typical), 150°C (min.) |
| Resolution | 16 bits |
| IEC 61000-4-3 RS | 80 MHz to 1 GHz: 3 V/m |
| External Power | 12/24 VDC |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV;IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m;IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV;IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV;IEC 61000-4-6 CS: 10 V;IEC 61000-4-8 PFMF |
| No. of Power Inputs | 1 |
| Digital Input Channels | 45MR-1600 Series: 16;45MR-1601 Series: 16;45MR-2606 Series: 8 |
| Sampling Rate | All channels: 100 samples/sec;Per channel: 12.5 samples/sec;Single channel: 100 samples/sec |
| Accuracy | ±0.1% FSR @ 25°C;±0.3% FSR @ -40 and 75°C |
| IEC 61000-4-2 ESD | 4 kV (Contact), 8 kV (Air) |
| All channels | 100 samples/sec |
| Housing | Plastic |
| Millivolt Type | ±19.532 mV;±39.062 mV;±78.126 mV |
| Field Power | 45MR-1600 Series: 19.3 mA @ 12 VDC;45MR-1601 Series: 19.3 mA @ 12 VDC;45MR-2404 Series: 31.2 mA @ 12 VDC;45MR-2606 Series: 15.4 mA @ 12 VDC;45MR-1600 Series: 25.3 mA @ 24 VDC;45MR-1601 Series: 25.3 mA @ 24 VDC;45MR-2404 Series: 24.7 mA @ 24 VDC;45MR-2606 Series: 18.7 mA @ 24 VDC |
| Type | Form A power relay |
| Millivolt Accuracy | ±0.1% FSR @ 25°C;±0.3% FSR @ -40 and 75°C |
| Power Connector | 45MR-7210: Spring-type Euroblock terminal;45MR-7210-T: Spring-type Euroblock terminal |
| IEC 61000-4-6 CS | 10 V |
| Shock | IEC 60068-2-27 |
| Electrical Endurance | 400,000 operations @ 2 A resistive load |
| Pulse Output Frequency | 1 kHz |
| Input Connection | 2- or 3-wire |
| Contact Resistance | 100 milli-ohms (max.) |
| System Power | 45MR-1600 Series: 59.4 mA @ 3.3 VDC;45MR-1601 Series: 59.4 mA @ 3.3 VDC;45MR-2404 Series: 44 mA @ 3.3 VDC;45MR-2600 Series: 57.2 mA @ 3.3 VDC;45MR-2601 Series: 63.8 mA @ 3.3 VDC;45MR-2606 Series: 62.7 mA @ 3.3 VDC;45MR-3800 Series: 197.3 mA @ 3.3 VDC;45MR-3810 Series: 187 mA @ 3.3 VDC;45MR-6600 Series: 131.7 mA @ 3.3 VDC;45MR-6810 Series: 148.1 mA @ 3.3 VDC;45MR-7210 Series: 45m A @ 24 VDC |
| Wet Contact (DI to FP+) | On: 10 to 30 VDC;Off: 0 to 3 VDC |
| Single channel | 100 samples/sec |
| Input Range | 45MR-3800 Series: 0 to 20 mA, 4 to 20 mA, 4 to 20 mA (burnout detection);45MR-3810 Series: 0 to 10 VDC or -10 to 10 VDC |
| Per channel | 2 samples/sec |
| Package Quantity | 1 |
