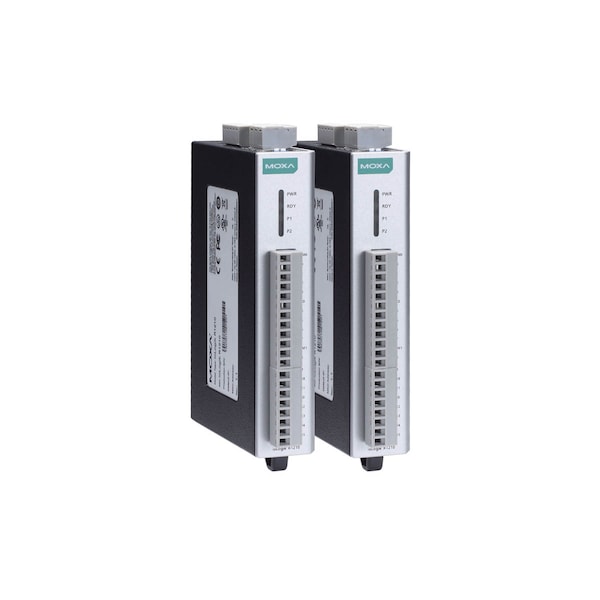

Rs-485 Remote I/O, 8 Ais, -40 To 85°C Operating Temperature.
| Operating temperature | Standard Models: -10 to 75°C (14 to 167°F); Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
|---|---|
| Built-in Resistor for Current Input | 120 ohms |
| Input Range | 0 to 10 VDC, 0 to 20 mA, 4 to 20 mA (burn-out mode) |
| Stop Bits | 1, 2 |
| Type | Differential input |
| Vibration | IEC 60068-2-6 |
| Accuracy | ±0.1% FSR @ 25°C; ±0.3% FSR @ -10 and 60°C; ±0.5% FSR @ -40 and 75°C |
| Data Bits | 8 |
| I/O Mode | Voltage / Current |
| Wiring | I/O cable max. 16 AWG |
| Freefall | IEC 60068-2-32 |
| Safety | UL 508 |
| Resolution | 16 bits |
| Isolation | 3k VDC or 2k Vrms |
| Serial Line Protection | ESD Protection: 15 kV; Surge Protection: 1 kV |
| Storage temperature | -40 to 85°C |
| EMS | EN 55024, EN 61000-4-2 (ESD) Level 3, EN 61000-4-5 (Surge) Level 2; IEC 61000-4, IEC 61000-6 |
| Parity | None, Even, Odd (default = None) |
| Dimensions | 27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in) |
| Protocols | Modbus RTU |
| Shock | IEC 60068-2-27 |
| High/Low Resistor for RS-485 | 1 kΩ, 150 kΩ |
| Interface | RS-485-2w: Data+, Data-, GND (5-contact terminal block for two serial port) |
| Sampling Rate (all channels) | 12 Hz |
| Analog Inputs | 8 channels |
| Input Impedance | 10M ohms (min.) |
| EMI | EN 55022, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class A |
| Baudrate | 1200 to 921.6 kbps (default = 9600) |
| Power Consumption | 216 mA @ 24 VDC |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Package Quantity | 1 |
