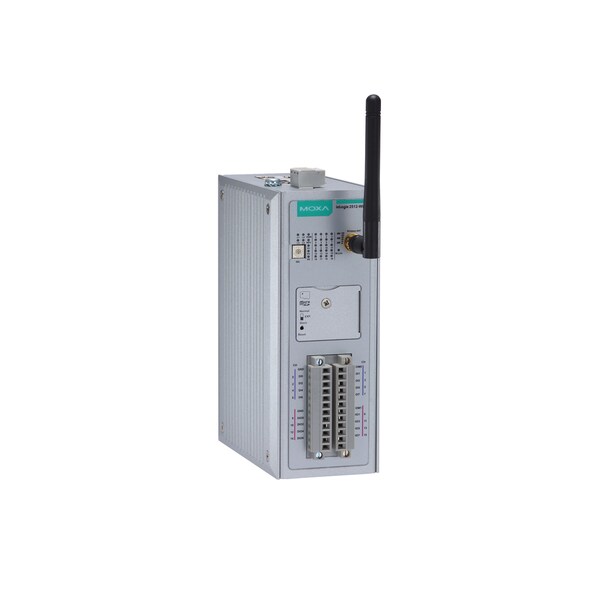

Smart Remote I/O W/ 8 Dis, 8 Dios, Iologik 2512
| Mounting | DIN Rail, wall |
|---|---|
| Wet Contact (DI to COM) | On: 10 to 30 VDC; Off: 0 to 3 VDC |
| Digital Inputs | 8 channels |
| EMS | EN 55024, EN 61000-4-2, EN 61000-4-3,EN 61000-4-4, EN 61000-4-5, EN 61000-4-6; EN 61000-4-8, EN 61000-4-11, EN 61000-6-2 |
| Operating temperature | Standard Models: -10 to 60°C (14 to 140°F); Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Dry Contact | On: short to GND; Off: open |
| Serial Ports | 2, RJ45, 3-in-1 interface |
| Wiring | I/O cable max. 14 AWG |
| Over-current Protection | 1.5 A per channel @ 25°C |
| Type | Sink |
| Input Leakage Current | < 1 mA (@ 30 VDC) |
| Expansion Slot | Up to 32 GB microSD™ memory card (SDHC compatible) |
| Ethernet | 4 switched 10/100 Mbps RJ45 ports; 1 optimized port for faster downstream communications with daisy-chained ioLogik E1200 units |
| Data Bits | 5, 6, 7, 8 |
| Current Rating | 500 mA per channel @ 25°C |
| Vibration | IEC 60068-2-6 |
| Freefall | IEC 60068-2-32 |
| Over-temperature Shutdown | 175°C (min.) |
| Protocols | Modbus/RTU (master), serial tunnel mode (client/server), Modbus/TCP, TCP/IP, UDP, DHCP, BOOTP, SNMP, HTTP, CGI, SNTP, SMTP |
| Safety | NCC, UL 508, EN 60950-1 |
| Common Type | COM, 8 points |
| Configurable DI/Os | 8 channels |
| Radio | FCC Part 22H, FCC Part 24E,EN 301 489-1, EN 301 489-7, EN 301 511 |
| Storage temperature | -40 to 85°C |
| I/O Mode | DO or Pulse Output, DI or Event Counter |
| Power Input | 24 VDC nominal, 9 to 48 VDC |
| Isolation | 3k VDC or 2k Vrms |
| Baudrate | 1,200 to 115,200 bps |
| Over-voltage Protection | 45 VDC |
| Digital Filtering Time Interval | Software configurable |
| Flow Control | CTS, RTS, None |
| Counter Frequency | 2.5 kHz |
| Stop Bits | 1, 2, 1.5 |
| Altitude | Up to 2,000 m |
| Protocol | RTU, Modbus |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Serial Line Protection | ≥ 8 kV ESD for all signals |
| Pulse Output Frequency | 5 kHz |
| EMI | EN 55022; EN 61000-3-2; EN 61000-3-3; FCC Part 15, Subpart B, Class A |
| Parity | None, Odd, Even |
| Shock | IEC 60068-2-27 |
| Sensor Type | Wet Contact (NPN or PNP) and Dry Contact |
| Protection | 1.5 kV magnetic isolation |
| Package Quantity | 1 |
