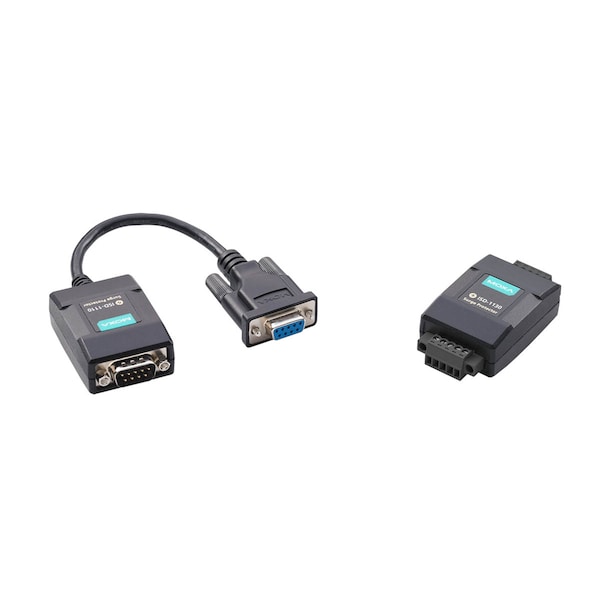

Surge Prtctr Data Line Surge Prtctr Indst Surge Prtctr, Isd-1130-T
| Item | Surge Protection Device |
|---|---|
| Length | 2.01 in |
| Depth | 0.81 in |
| Width | 1.46 in |
| Response Time | < 1 ns |
| ISD-1130-T | Data in: Terminal block; Data out: Terminal block |
| Number of Protected Lines | ISD-1110-T: 7; ISD-1130-T: 4 |
| Surge Capacity | 4 kV, 8/20μs impulse per line |
| Altitude | Up to 2000 m |
| Protection Mode | Line to line, line to ground |
| BandWidth | 10 MHz loss < 1 dB |
| EMS | EN 61000-4-5 Level 4 (4 kV)) |
| Protection Rating | IP30 |
| Ambient Relative Humidity | 95% max, non-condensing |
| Housing | Plastic |
| Storage temperature | -40 to 85 deg C |
| Maximum Power Protection | 400 W |
| Operating temperature | -40 to 85°C |
| ISD-1110-T | Data in: DB9 male; Data out: DB9 female |
| Maximum Load Current | ISD-1110-T: 0.1 A (23°C), 0.05 A (85°C); ISD-1130-T: 0.12 A (23°C), 0.07 A (85°C) |
| Working Voltage | ISD-1110-T: 15 V; ISD-1130-T: 5 V |
| Package Quantity | 1 |
