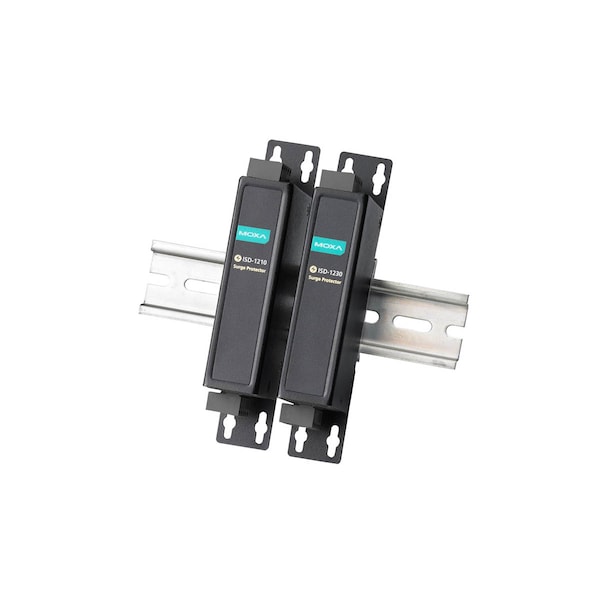

Surge Prtctr Data Line Surge Prtctr Indst Surge Prtctr, Isd-1230-T
| Item | Surge Protection Device |
|---|---|
| Length | 3.74 in |
| Depth | 0.98 in |
| Width | 2.01 in |
| Operating temperature | -40 to 85°C |
| Ambient Relative Humidity | 95% max, non-condensing |
| EMS | IEC 61643-21 C2 (20 kV 1.2/50, 10 kA 8/20) |
| Maximum Load Current | 0.4 A (20°C), 0.13 A (85°C) |
| Protection Rating | IP30 |
| Response Time | < 1 ns |
| Working Voltage | 1210-T: 15 V; 1230-T: 5 V |
| Protection Mode | Line to line, line to ground |
| Altitude | Up to 2000 m |
| Storage temperature | -40 to 85 deg C |
| Number of Protected Lines | 4 |
| Maximum Power Protection | 5,000 W |
| Surge Capacity | 20 kV, 8/20μs impulse per line |
| ISD-1210-T/1230-T | Data in: Terminal block; Data out: Terminal block |
| BandWidth | 10 MHz loss < 1 dB |
| Housing | Metal |
| Package Quantity | 1 |
