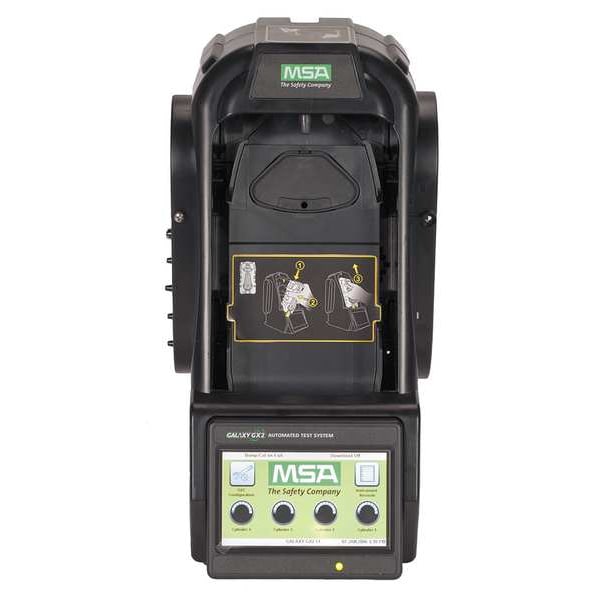

Automated Test System, 12Hx8Lx6-1/2W In.
| Item | Automated Test System |
|---|---|
| For Use With | Mfr. No. 10116924, 10116925, 10116926, 10116927, 10116928, 10116929 |
| Length | 8 in |
| Height | 12 in |
| Includes | Barbs, Ethernet Cable, Fresh Air Filter, Power Supply, Screen Protector, Spare Parts Kit, Test Stand |
| Width | 6-1/2 in |
| Features | Assign Your Equipment to Locations, Departments, Workers to Search Your Records and Manage Grid Permissions Later, Each Morning, You'll Receive a Concise Fleet Summary E-Mail, If Your Fleet is Healthy, You're Done, Intuitive and Accessible 24/7 with an Internet Connection, Manage as Many Devices Across as Many Physical Locations as You Need with One Grid Account, Quickly Search Equipment Records for In-Depth Information About Device Status, Test Results and Alarms and Generate Reports as Needed |
| Test Time | Bump 15 sec, Calibration 60 sec, Sensor Response and Clear Times Less Than 15 sec |
| Power Source | 100-240V AC, 47-63 Hz |
| Operating Temp. Range | 32 to 104 deg F |
| Wired Ethernet | Included |
| Removable Memory Card | No |
| Charger | Incluido |
| Status Indicator | Yes |
| Regulator | No |
| Included Regulator | 4LP38 |
| Operating Frequency | 47 to 63 Hz |
| Includes Charger | Yes |
| Operating Temperature - Maximum | 104 deg F |
| Operating Temperature - Minimum | 32 deg F |
| Test Stand Depth | 7.9 in |
| Compatible Detector Model/Series | Altair 5, Altair 5X |
| Compatible Detector Manufacturer Part Number | 10116924, 10116925, 10116926, 10116927, 10116928, 10116929 |
| Includes Regulator | No |
| Test Stand Height | 11.8 in |
| Test Stand Width | 6-1/2 in |
| Operating Voltage | 100 to 240V AC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
