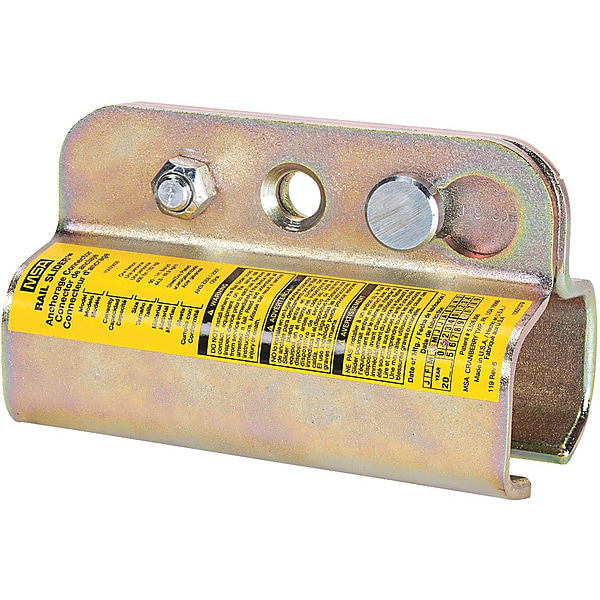

Rail-Slider, steel, galvanized, for 141 rail, used on train/crane type rail, carabiner required - sold separately
| Item | Rail Slider Anchor |
|---|---|
| Standards | ANSI Z359.18, OSHA |
| Length | 8-1/4 in |
| Weight Capacity | 310 lb |
| Tensile Strength | 5,000 lb |
| Anchor Material | Steel |
| Attachment Point | Carabiner |
| Workers per System | 1 |
| Material | Galvanized Steel |
| Depth | 8-1/4 in |
| Includes | Instruction Manual |
| Installation | Permanent |
| Width | 5-1/4 in |
| Brand and Series | MSA Safety Rail Slider |
| For Min. Rail Weight | 91 lb |
| Visual Load Indicator | No |
| Includes Mounting Hardware | No |
| For Min. Rail Head Width | 1-1/2 in |
| Series | MSA Rail Slider |
| For Max. Rail Head Width | 2-1/2 in |
| For Max. Rail Weight | 136 lb |
| Mounting Orientation | Horizontal |
| Anchor Installation | Permanent |
| Anchor Performance | General Purpose |
| Beam Clamp Style | Sliding |
| For Maximum Flange Thickness | 2-1/2 in |
| OSHA Standards Met | OSHA |
| For Maximum Rail Head Width | 2-1/2 in |
| For Minimum Rail Weight | 91 lb |
| For Minimum Rail Head Width | 1-1/2 in |
| For Maximum Rail Weight | 136 lb |
| For Minimum Flange Width | Not Applicable |
| Anchorage End Connection | Rebar Hook |
| ANSI Standards Met | ANSI Z359.18 |
| For Maximum Flange Width | Not Applicable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
