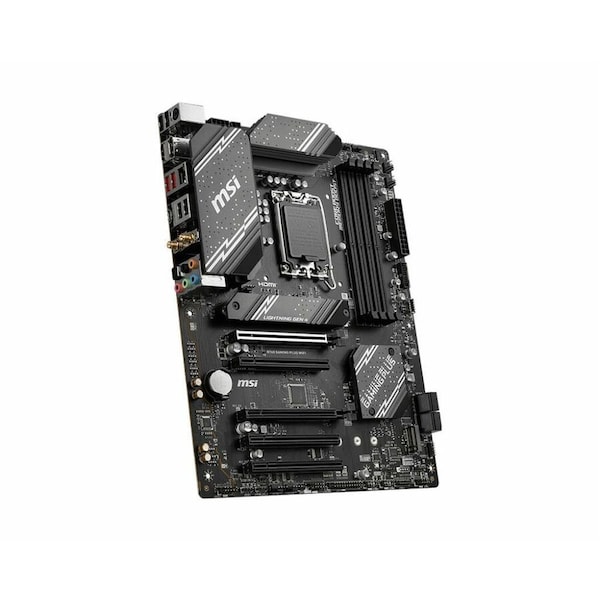

B760 GAMING PLUS WIFI Gaming Desktop Motherboard
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Gaming Desktop Motherboard |
| Width | 12 in |
| Depth | 9.6 in |
| Number of USB 2.0 Ports | 4 |
| Total Number of PCI Express Slots | 5 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| HDMI | Yes |
| RAID Levels | 0, 1, 10, 5 |
| Total Number of Expansion Slots | 5 |
| Onboard Video | CPU Dependent Video |
| Controller Type | Serial ATA, 600 |
| Number of Network (RJ-45) Ports | 1 |
| Number of Memory Slots | 4 |
| Processor Generation Supported | 12th Gen, 13th Gen |
| Total Number of Onboard USB Ports | 7 |
| Processor Supported | Pentium Gold, Core, Celeron |
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
| Memory Speed Supported | 5000 MHz, 6000 MHz, 6600 MHz, 6200 MHz, 5600 MHz, 6800 MHz, 5400 MHz, 5800 MHz, 4800 MHz, 5200 MHz, 6400 MHz |
| Audio Channels | 7.1 |
| Total Number of USB Ports | 7 |
| Bluetooth | Yes |
| Wireless LAN Standard | IEEE 802.11-a/b/g/n/ac/ax |
| Total Processor Supported | 1 |
| Maximum Memory Supported | 192 GB |
| Gigabit Ethernet | Yes |
| S/PDIF | Yes |
| DisplayPort | Yes |
| HDMI Version | 2.1 |
| Memory Technology | DDR5 SDRAM |
| Chipset Model | B760 |
| Number of PCI Express x16 Slots | 5 |
| RAID Supported | Yes |
| Number of Onboard USB 2.0 Ports | 4 |
| Package Contents | B760 GAMING PLUS WIFI Gaming Desktop Motherboard , wi-fi antenna , Sata Cables, M.2 Screw/Stand off Set, I/O Shield, Quick Installation Guide, European Union Regulatory Notice |
| Bluetooth Standard | 5.3 (Bluetooth) |
| PCI Express Standard | PCI Express 4.0, PCI Express 3.0 |
| Wireless LAN | Yes |
| 2.5Gigabit Ethernet | Yes |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 2 |
| Processor Socket | Socket LGA-1700 |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
