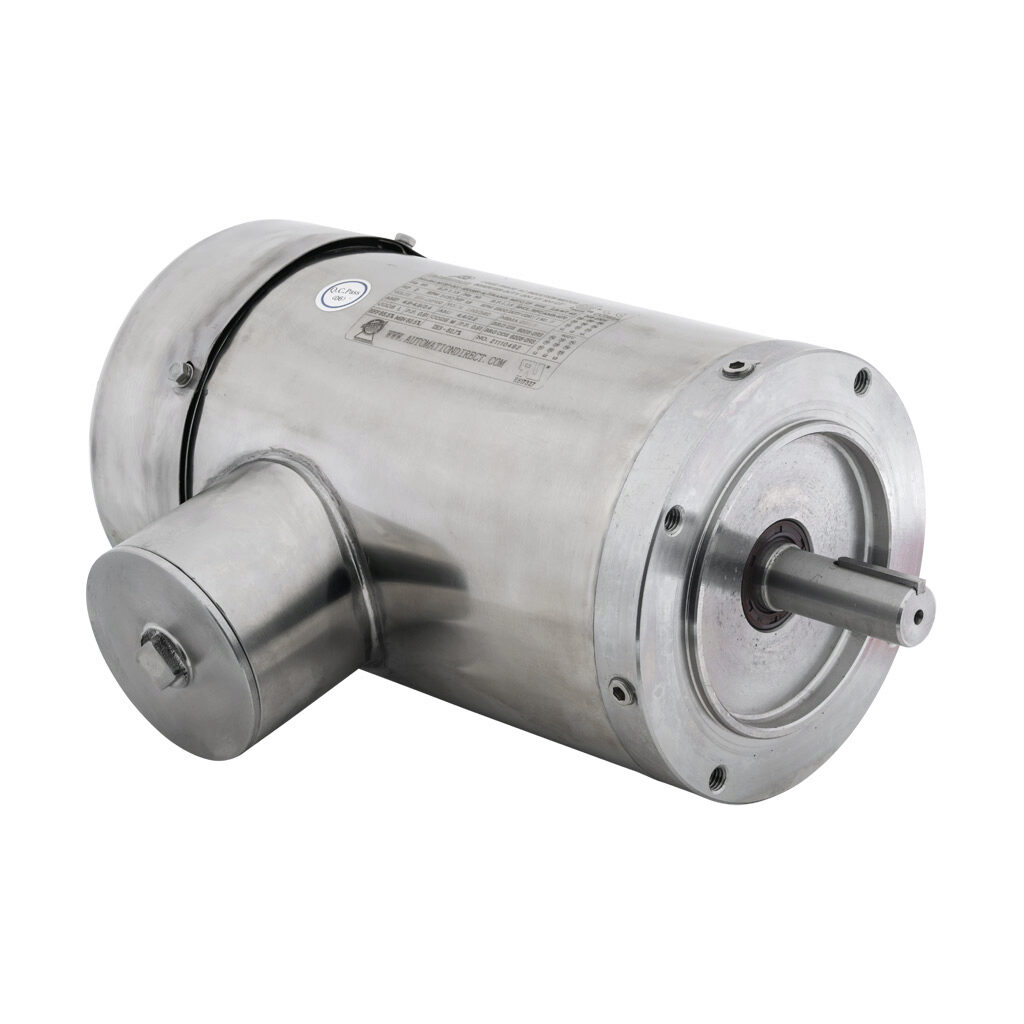

Motor de inducción de CA IronHorse MTS de eficiencia premium, resistente al lavado y clasificado para inversor, de 2hp, 3 fases, 208-230/460 VCA, 3600rpm, TEFC, marco NEMA 145TC, acero inoxidable 304, montaje tipo C-face.
| Brand | IronHorse |
|---|---|
| Item | Motor |
| Series | MTS |
| Efficiency Group | Premium efficiency |
| Efficiency | 85.5 |
| Voltage Type | AC |
| Motor Type | Induction |
| Motor Application | Washdown and inverter rated |
| Horsepower Rating | 2hp |
| Number of Phases | 3 |
| Voltage Rating | 208-230/460 VAC |
| Synchronous Speed | 3600rpm |
| Nameplate RPM | 3480rpm |
| Overload Type | None |
| Enclosure Type | TEFC |
| Shaft Type | Round with square key |
| Shaft Diameter | 7/8in |
| Shaft Material | 304 stainless steel |
| Motor Frame | NEMA 145TC |
| Frame Material | 304 stainless steel |
| Electrically Reversible | Yes |
| Insulation Class | Class F |
| IP Rating | IP69K |
| Constant Torque Rating | 10:1 |
| Variable Torque Rating | 20:1 |
| Service Factor | 1.15 |
| Integrated Brake | No |
| NEMA Design | Design B |
| Junction Box Orientation | F1 |
| Mounting | C-face |
| Mounting Orientation | Horizontal or vertical |
| Additional Information | Class I Div 2 hazardous rating |
