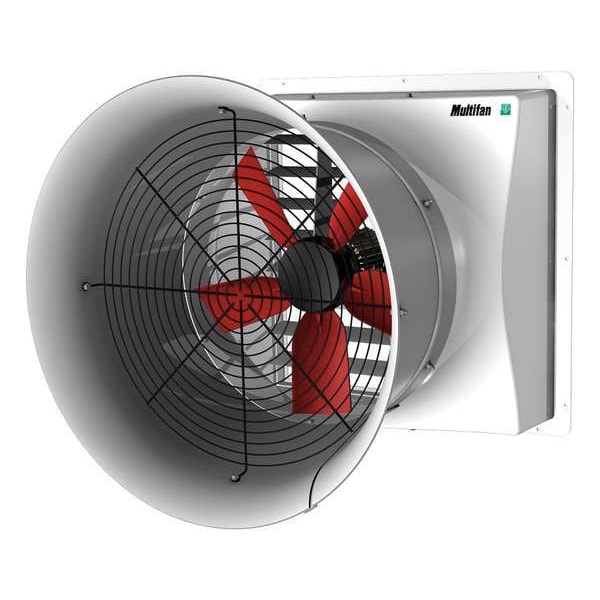

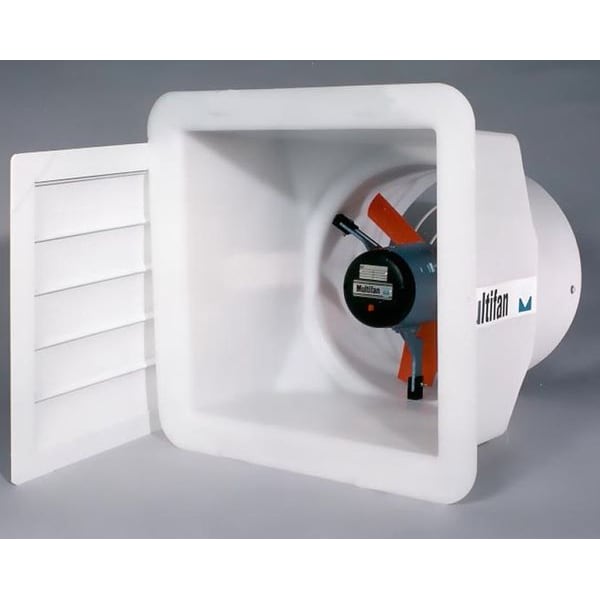

Agricultural Exhaust Fan, 240V, 21/32 HP
| Type | Preassembled High Efficiency, Direct Drive, Cone |
|---|---|
| HP | 2/3 hp |
| CFM @ 0.000-In. SP | 7700 |
| Flange Width (In.) | 2 |
| Motor Insulation | Class F |
| Height (In.) | 34-5/8 |
| CFM/Watt @ 0.000-In. SP | 11.7 |
| Number of Blades | 5 |
| Propeller Material | Polypropylene |
| Full Load Amps | 3.0 |
| Watts | 658 |
| Bearing Type | Permanently Lubricated Sealed Ball |
| Propeller Dia. (In.) | 24 |
| Width (In.) | 34-5/8 |
| Fan RPM | 1,085 |
| Cone Dia. (In.) | 35-3/4 |
| Motor RPM | 1085 |
| Frame Finish | Polished |
| Motor Type | 3-Phase |
| Mounting Location | Wall |
| CFM @ 0.050-In. SP | 7,530 |
| Item | Agricultural Exhaust Fan |
| Opening Required W (In.) | 30-3/4 |
| Opening Required H (In.) | 30-3/4 |
| Frame Material | Fiberglass |
| Venturi Depth (In.) | 8-1/4 |
| Voltage | 240 V |
| Includes | Cone, Exhaust Screen, Housing, Instructions, Intake Shutter |
| Phase | 1 |
| Max. Depth (In.) | 35-3/4 |
| Motor Enclosure | Totally Enclosed Air Over |
| Max. Ambient Temp. (F) | 104 |
| CFM @ 0.150-In. SP | 7,040 |
| CFM @ 0.100-In. SP | 7,320 |
| Hz | 60 |
| Agency Compliance | BESS Labs, CURUS |
| Standards | BESS Labs, CURUS |
| Flange Width | 2 in |
| Assembled | Unassembled |
| Manufacturer Warranty Length | 3 yr |
| Includes Motor | Yes |
| Ventilation Type | Exhaust |
| Blade Material | Polypropylene |
| Nameplate Voltage | 240V AC |
| Overall Height | 34-5/8 in |
| Guard Finish | Smooth |
| For Cut-Out Width | 30-3/4 in |
| Motor Horsepower | 0.6667 HP |
| Maximum Ambient Operating Temperature | 104 deg F |
| Overall Depth | 35-3/4 in |
| Blade Diameter | 24 in |
| Overall Diameter | 35-3/4 in |
| Exhaust Airflow @ 0.125 in SP | 1,353 cfm |
| For Cut-Out Height | 30-3/4 in |
| Overall Width | 34-5/8 in |
| Motor Speed | 1,085 rpm |
| Exhaust Airflow @ 0.100 in SP | 7,320 cfm |
| Exhaust Airflow @ 0.000 in SP | 7,700 cfm |
| Country of Origin (subject to change) | Netherlands |
| Package Quantity | 1 |
