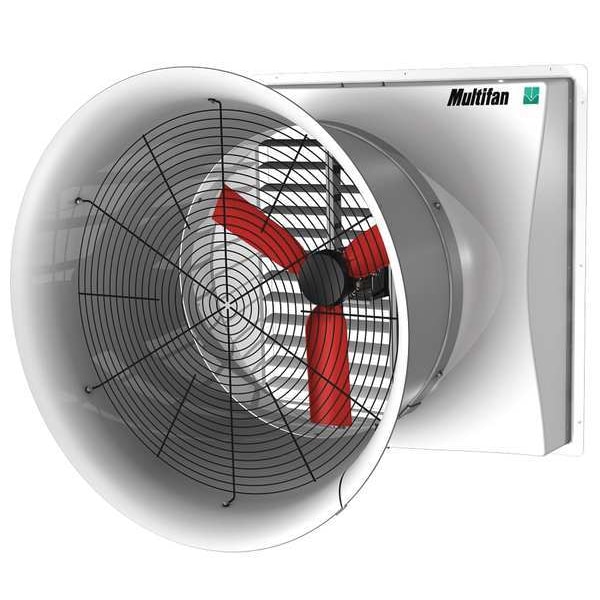

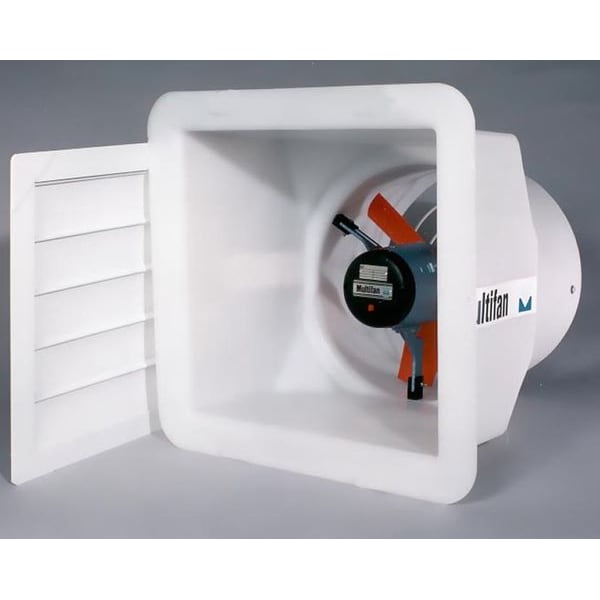

Agricultural Exhaust Fan, 240V, 23/32 HP
| Type | Preassembled High Efficiency, Direct Drive, Cone |
|---|---|
| Fan RPM | 815 |
| Full Load Amps | 3.6 |
| Height (In.) | 50-1/2 |
| Watts | 730 |
| Frame Finish | Polished |
| CFM @ 0.000-In. SP | 12,500 |
| Phase | 1 |
| Voltage | 240 V |
| Max. Depth (In.) | 50-1/2 |
| Hz | 60 |
| Mounting Location | Wall |
| Includes | Cone, Exhaust Screen, Housing, Instructions, Intake Shutter |
| HP | 3/4 hp |
| Motor Enclosure | Totally Enclosed Air Over |
| Flange Width (In.) | 2 |
| Opening Required H (In.) | 45-1/4 |
| Width (In.) | 50-1/2 |
| Number of Blades | 3 |
| Max. Ambient Temp. (F) | 104 |
| Opening Required W (In.) | 45-1/4 |
| Cone Dia. (In.) | 50-1/2 |
| Frame Material | Fiberglass |
| Venturi Depth (In.) | 8-1/4 |
| Motor Insulation | Class F |
| Propeller Dia. (In.) | 36 |
| Propeller Material | Polypropylene |
| CFM @ 0.150-In. SP | 10,460 |
| CFM @ 0.100-In. SP | 11,200 |
| Item | Agricultural Exhaust Fan |
| CFM @ 0.050-In. SP | 11,900 |
| Motor Type | 3-Phase |
| CFM/Watt @ 0.000-In. SP | 17.1 |
| Bearing Type | Permanently Lubricated Sealed Ball |
| Motor RPM | 815 |
| Agency Compliance | BESS Labs, CURUS |
| Flange Width | 2 in |
| Standards | BESS Labs, CURUS |
| Overall Width | 50-1/2 in |
| Motor Horsepower | 0.75 HP |
| Overall Depth | 50-1/2 in |
| Overall Height | 50-1/2 in |
| For Cut-Out Height | 45-1/4 in |
| Nameplate Voltage | 240V AC |
| Overall Diameter | 50-1/2 in |
| Manufacturer Warranty Length | 3 yr |
| Assembled | Unassembled |
| Maximum Ambient Operating Temperature | 104 deg F |
| Blade Material | Polypropylene |
| Motor Speed | 815 RPM |
| Ventilation Type | Exhaust |
| Guard Finish | Smooth |
| Exhaust Airflow @ 0.000 in SP | 12,500 cfm |
| Includes Motor | Yes |
| Blade Diameter | 36 in |
| For Cut-Out Width | 45-1/4 in |
| Exhaust Airflow @ 0.125 in SP | 3,350 cfm |
| Exhaust Airflow @ 0.100 in SP | 11,200 cfm |
| Country of Origin (subject to change) | Netherlands |
| Package Quantity | 1 |
