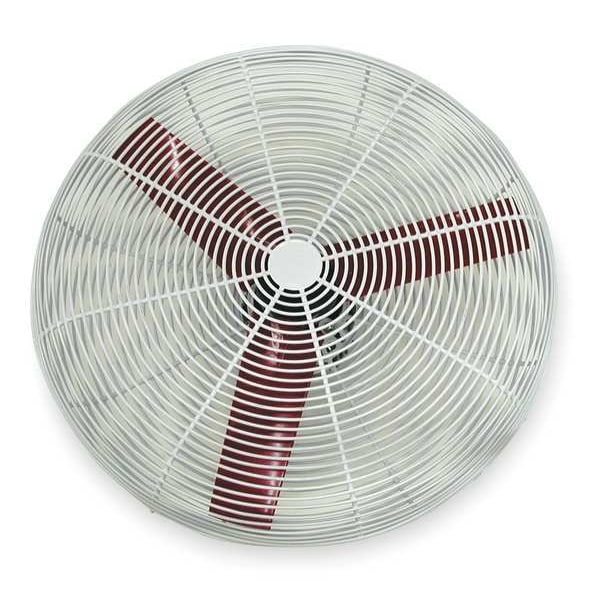

Corr Res Air Circ, 24 In, 8000 cfm, 115V
| Item | Corrosion-Resistant Industrial Fan |
|---|---|
| Voltage | 115V AC |
| Includes | Mounting Yoke |
| Standards | OSHA Compliant Guards, UL Recognized Motor |
| Guard Material | Steel |
| Environmental Applications | Industrial |
| Fan Mounting Location | Ceiling, Wall |
| Fan Accessory Style | Corrosion Resistant |
| Bearing Type | Sealed Ball |
| Assembled | Yes |
| Fan Style | Corrosion Resistant |
| Cord Length | 10 ft. |
| Blade Material | Polypropylene |
| Max. Ambient Temp. | 104 Degrees F |
| Requires | Mounting Device and Adjustable Speed Control |
| Shaft Dia. | 9/16 in |
| Width | 27 in |
| Hz | 60 |
| CFM High | 8,000 |
| Mobile/Stationary | Stationary |
| Operating Amps | 3.8 |
| Phase | 1 |
| Number of Blades | 3 |
| Sound Level | 55 dBA |
| Outside Dia. | 27 in |
| Speeds | 1 |
| Motor RPM | 1,750 |
| Thermal Protection | Auto |
| Application | Spot Cooling |
| Housing Material | Steel |
| Motor Enclosure | Totally Enclosed Air Over |
| Max. Depth | 14 in |
| Oscillating | No |
| Height | 27 in |
| Motor Insulation | Class F |
| Blade Dia. | 24 in |
| Wire Guard Finish | Plastic Coated White |
| Oscillating / Non-Oscillating | Non-Oscillating |
| Motor Type | Permanent Split Capacitor |
| Motor HP | 0.3333 |
| Drive Type | Direct Drive |
| Watts | 456 |
| Number of Speeds | 1 |
| RPM | 1,750 |
| Oscillation | Non-Oscillating |
| Amps | 3.8 |
| Air Flow | 8,000 cfm |
| Wheeled Base | Stationary |
| Assembly Required | No |
| Fan Housing Material | Steel |
| Fan Cord Length | 10 ft |
| Blade Diameter | 24 in |
| Depth | 14 in |
| Country of Origin (subject to change) | Netherlands |
| Package Quantity | 1 |
