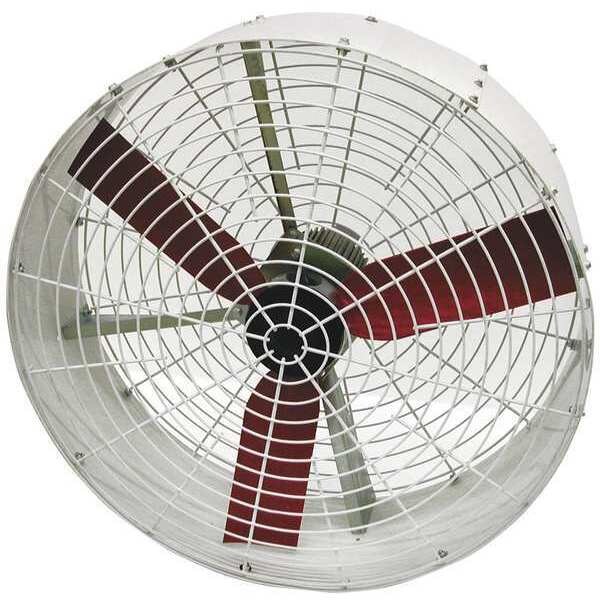

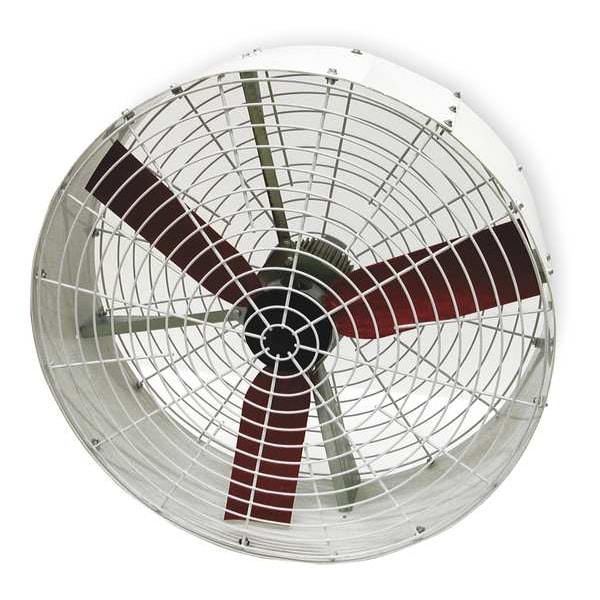

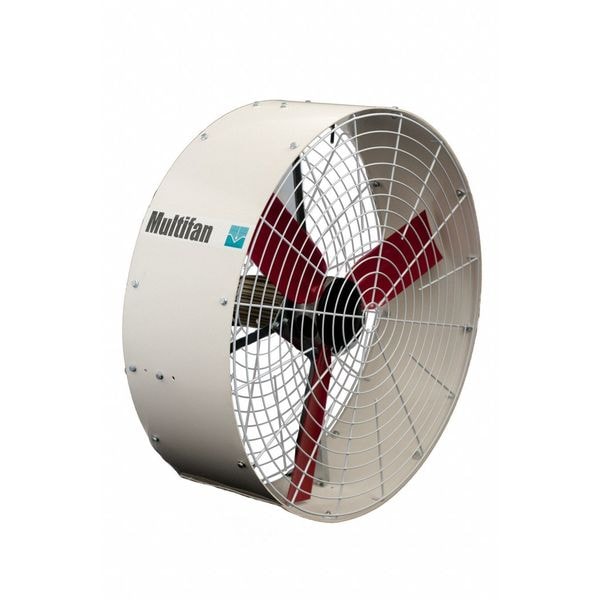

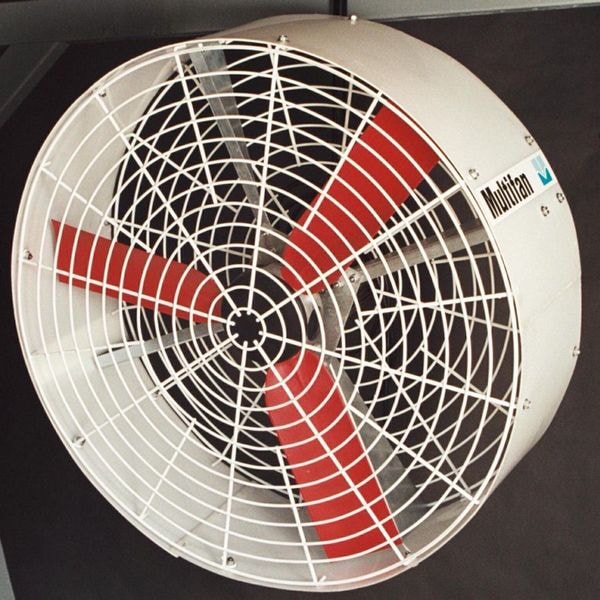

Corr Res Air Circ, 36 In, 12,000 cfm, 240V
| Item | Corrosion-Resistant Industrial Fan |
|---|---|
| Voltage | 240V AC |
| Includes | Mounting Yoke |
| Oscillating | No |
| Sound Level | 61 dBA |
| Blade Material | Polypropylene |
| Standards | UL Recognized Motor |
| Oscillating / Non-Oscillating | Non-Oscillating |
| Blade Dia. | 36 in |
| CFM High | 12,000 |
| Watts | 768 |
| Phase | 1 |
| Motor Insulation | Class F |
| Outside Dia. | 37-1/2 in |
| Number of Blades | 3 |
| Thermal Protection | Auto |
| Max. Ambient Temp. | 104 Degrees F |
| Housing Material | Polypropylene |
| Speeds | 1 |
| Motor RPM | 770 |
| Motor HP | 0.5 |
| Max. Depth | 17-1/4 in |
| Wire Guard Finish | Plastic Coated White |
| Fan Mounting Location | Fan Head Only |
| Application | Spot Cooling |
| Height | 37 1/2 in |
| Width | 37 1/2 in |
| Drive Type | Direct Drive |
| Guard Material | Steel |
| Requires | Mounting Device and Adjustable Speed Control |
| Fan Style | Corrosion Resistant |
| Motor Type | Permanent Split Capacitor |
| Mobile/Stationary | Stationary |
| Operating Amps | 3.2 |
| Motor Enclosure | Totally Enclosed Air Over |
| Hz | 60 |
| Shaft Dia. | 3/4 in |
| Environmental Applications | Industrial |
| Assembled | Yes |
| Bearing Type | Sealed Ball |
| Fan Accessory Style | Corrosion Resistant |
| Number of Speeds | 1 |
| Air Flow | 12,000 cfm |
| RPM | 770 |
| Oscillation | Non-Oscillating |
| Fan Housing Material | Polypropylene |
| Blade Diameter | 36 in |
| Wheeled Base | Stationary |
| Assembly Required | No |
| Depth | 17-1/4 in |
| Amps | 3.2 |
| Country of Origin (subject to change) | Netherlands |
| Package Quantity | 1 |
