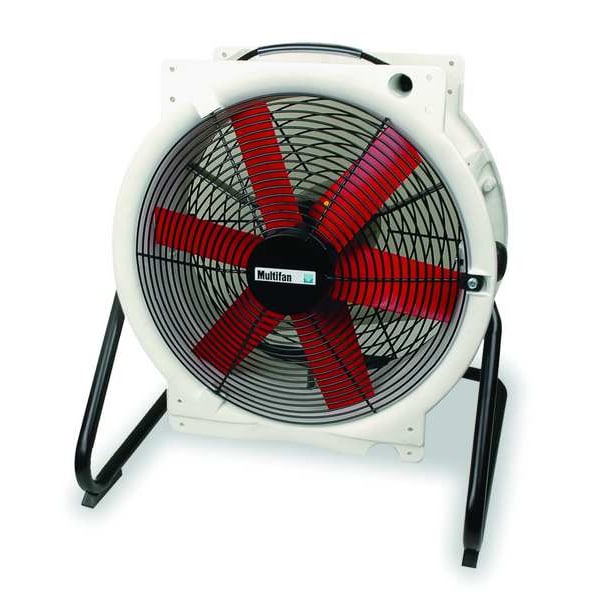

Corrosion Resistant Air Circulator, Floor Mount, 16 in Blade Dia, 120V, 3,250 cfm, Non-Oscillating
| Blade Diameter | 16 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 1 |
| Voltage | 120V |
| Phase | 1 |
| Motor HP | 0.25 HP |
| Air Flow | 3,250 cfm |
| Drive Type | Direct Drive |
| Blade Material | Polypropylene |
| Sound Level | 50 dBA |
| Item | Air Circulator |
| Bearing Type | Sealed Ball |
| NEMA Plug Configuration | 5-15p |
| Standards | UL |
| Fan Mounting Location | Floor |
| CFM High | 3,790 |
| Motor RPM | 1,600 RPM |
| Shaft Dia. | 17/32 in |
| Height | 20-1/2 in |
| Number of Blades | 6 |
| Outside Dia. | 20 in |
| Thermal Protection | Automatic |
| Wire Guard Finish | Polyester Powder Coated |
| Motor Enclosure | Totally Enclosed Air Over |
| Mobile/Stationary | Mobile |
| Max. Depth | 17-1/2 in |
| Motor Type | Capacitor Start |
| Fan Style | Corrosion Resistant |
| Number of Conductors | 3 |
| Assembled | Yes |
| Fan Accessory Style | Corrosion Resistant |
| Width | 20-1/2 in |
| Environmental Applications | Industrial |
| Watts | 280 W |
| Full Load Amps | 2.6 |
| Guard Material | Steel |
| Motor Insulation | Class F |
| Max. Ambient Temp. | 140 deg F |
| Hz | 60 |
| Application | Live Stock and People Cooling; Air Circulation |
| Housing Material | Polypropylene |
| Wheeled Base | Mobile |
| Assembly Required | No |
| Depth | 17-1/2 in |
| Fan Cord Length | 10 ft |
| Fan Housing Material | Polypropylene |
| RPM | 1600 |
| Amps | 2.6 |
| Material | Polypropylene |
| Color | Red |
| Country of Origin (subject to change) | Netherlands |
| Package Quantity | 1 |
