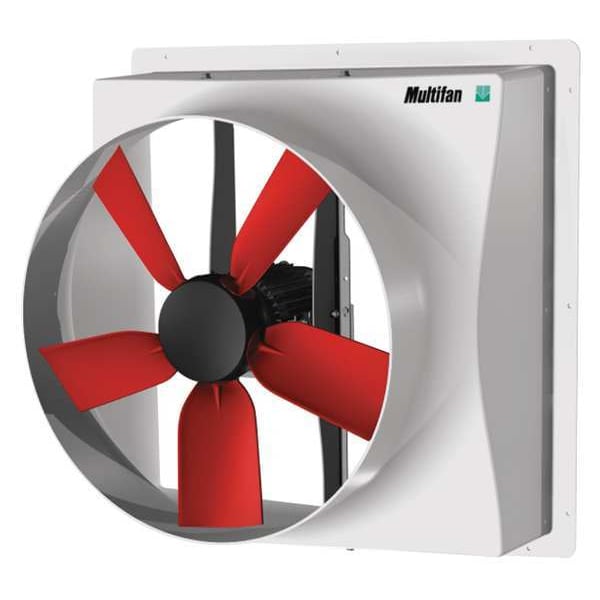

Exhaust Fan, 1125 rpm, 1 Phase
| Type | Preassembled High Efficiency, Direct Drive, Cone |
|---|---|
| Max. Ambient Temp. (F) | 140 |
| Hz | 60 |
| Item | Exhaust Fan |
| Propeller Dia. (In.) | 24 |
| Max. Depth (In.) | 20 |
| CFM @ 0.050-In. SP | 7,820 |
| Watts | 560 |
| Bearing Type | Permanently Lubricated Sealed Ball |
| Propeller Material | Polypropylene |
| Number of Blades | 4 |
| Motor RPM | 1125 |
| HP | 1/2 hp |
| Height (In.) | 34-1/2 |
| Motor Enclosure | Totally Enclosed Air Over |
| Full Load Amps | 2.6 |
| Width (In.) | 34-1/2 |
| Frame Finish | Powder Coated |
| Voltage | 240 V |
| Motor Type | 3-Phase |
| Motor Insulation | Class F |
| Frame Material | Fiberglass |
| CFM @ 0.000-In. SP | 8170 |
| Phase | 1 |
| Agency Compliance | BESS Labs, CURUS |
| Standards | BESS Labs, CURUS |
| Assembled | Assembled |
| Nameplate Voltage | 240V AC |
| Overall Height | 34-1/2 in |
| Maximum Ambient Operating Temperature | 140 deg F |
| Blade Diameter | 24 in |
| Includes Motor | Yes |
| Motor Horsepower | 0.5 HP |
| Overall Depth | 20 in |
| Exhaust Airflow @ 0.000 in SP | 8,170 cfm |
| Overall Width | 34-1/2 in |
| Motor Speed | 1,125 rpm |
| Blade Material | Polypropylene |
| Ventilation Type | Exhaust |
| Country of Origin (subject to change) | Netherlands |
| Package Quantity | 1 |
