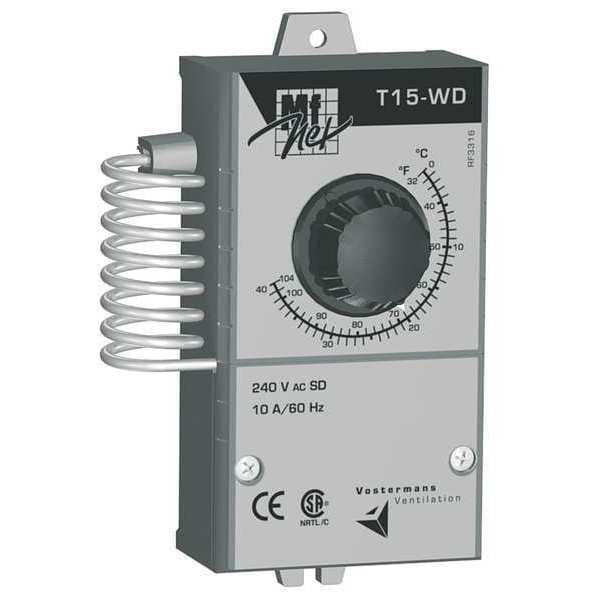

Line Volt Mechanical Tstat, Spring, 32 Degrees to 105 Degrees F, SPDT, 250 V
| Switch Action | Spring |
|---|---|
| Voltage | 250 V |
| Sensor Type | Gas Expansion |
| Differential | 2 Degrees F |
| Number of Relay Inputs | 1 |
| Thermostat Control Range | 32 to 105 deg F |
| Switch Type | SPDT |
| Color | Gray |
| Width | 4 in |
| Height | 6 in |
| Inductive Amps @ 240V | 10 A |
| Full Load Amps @ 240VAC | 10 A |
| Contact Rating Resistive @ 240V | 10 A |
| Enclosure Type | Plastic non sealed. |
| Thermostat Heating/Cooling | Heating, Cooling |
| Thermostat Voltage | 120 to 240 V AC |
| Standards | CSA Certified |
| Thermostat Switch Type | SPDT |
| Resistive Amps @ 208VAC | 10 A |
| Remote Sensing Capability | No |
| Number of Switches | 1 |
| Thermostat Programmable | No |
| Control Range | 32 to 105 deg F |
| Full Load Amps @ 120VAC | 10 A |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Inductive Amps @ 120V | 10 A |
| Remote Sensing Bulb Included | No |
| Contact Rating Resistive @ 120V | 10 A |
| Depth | 2-1/2 in |
| Item | Line Volt Mechanical Tstat |
| Contact Rating Resistive @ 277V | 10 A |
| Number of Relay Outputs | 1 |
| Thermostat Type | Line Voltage |
| For Use With | Fans with a maximum Amp draw of 10 Amps |
| Input Voltage | 120 to 240VAC |
| Type | Single Speed |
| Features | Sealed Casing Keeps Out Water and Dust, Plastic Case Won't Rust or Corrode, 1 Full yr. Guarantee, segregated high voltage and low voltage components |
| Number of Poles | 1 |
| Overall Height | 65 mm |
| Temperature Control Range | 0 to 40 deg C |
| Housing Material | Plastic |
| Remote Control Functions | No |
| Amperage | 16 A |
| Number of Cooling Stages | 1 |
| Overall Depth | 155 mm |
| Temperature Differential | 2 Degrees F |
| Contact Rating | 250V |
| Programming Capability | Not Programmable |
| Housing Type | Plastic Non-Sealed |
| Overall Width | 100 mm |
| Number of Heating Stages | 1 |
| Country of Origin (subject to change) | Netherlands |
| Package Quantity | 1 |
