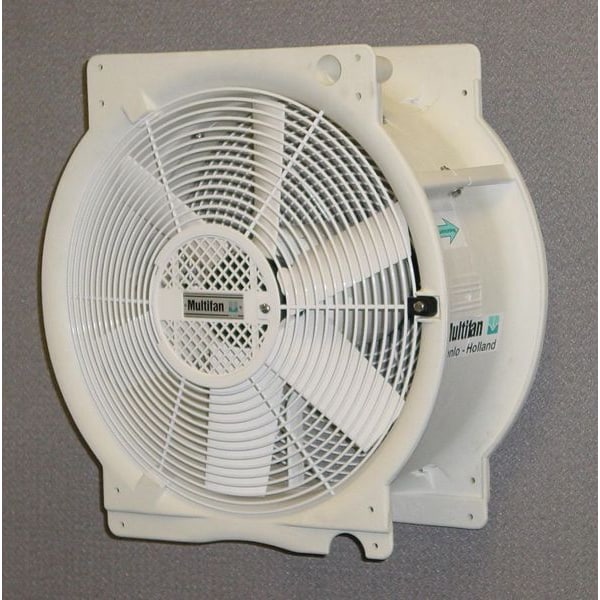

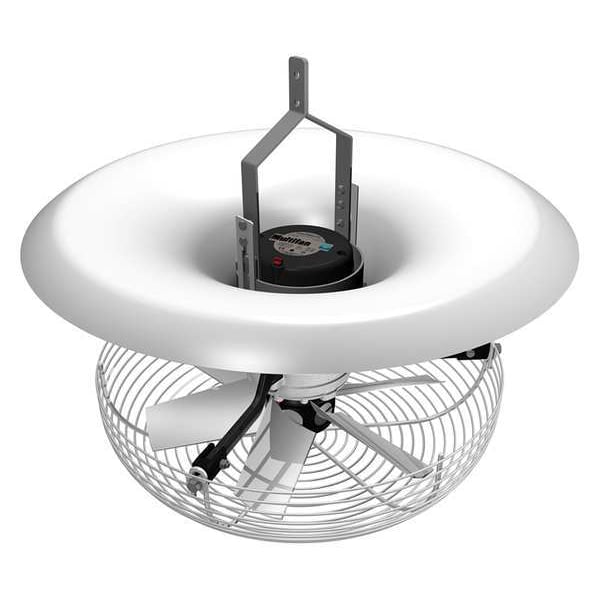

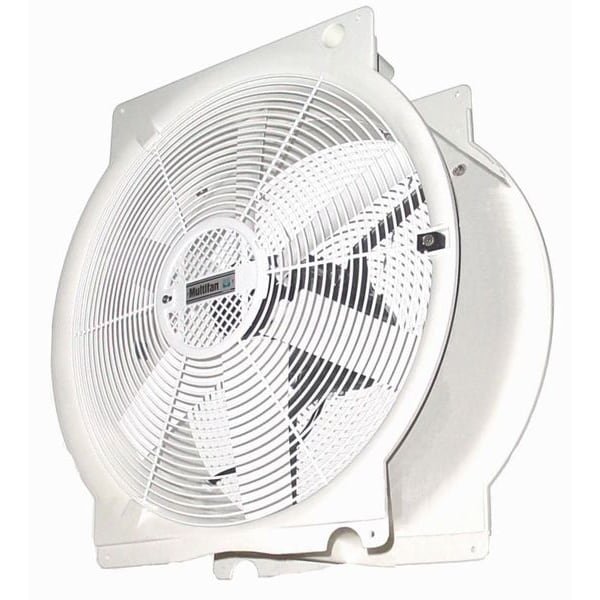

Vertical Recirculation Fan, 16 in Blade Dia, 8 Blades, Variable Speeds, 240V AC
| Number of Blades | 8 |
|---|---|
| Blade Diameter | 16 in |
| Number of Speeds | Variable |
| Voltage | 240V AC |
| Includes | Exhaust Fan, Guard, Installation Instructions |
| Reversible | No |
| Phase | 1 |
| Housing Finish | Polished White Polypropylene |
| Air Flow | 3,060 cfm |
| Amps | 0.9 |
| Item | Vertical Recirculation Fan |
| Full Load Watts | 270 |
| Speed Controllable | Yes |
| Max. Ambient Temp. | 105 deg F |
| Max. Mounting Height | 10 to 16 ft |
| Amps @ 60 Hz | 1.1 |
| Fan Voltage | 240VAC |
| Speed Controllable - Fans | Yes |
| CFM @ 50 Hz | 2,972 |
| RPM @ 60 Hz | 1,575 |
| Input Volts AC @ 60/50 Hz | 240 |
| Full Load Amps | 1.1 |
| Fan Housing Material | Polypropylene |
| Fan Blade Color | White |
| Mount Type | Stem/Snugger |
| Housing Color - Fans | White |
| Motor | Split Capacitor |
| Standards | CE |
| RPM @ 50 Hz | 1,330 |
| Watts @ 50 Hz | 230 |
| Housing Material - Fans | Polypropylene |
| Mounting Height | 9 ft 6 in to 16 ft |
| Amps @ 50 Hz | 1.1 |
| Fan Watts | 205 W |
| RPM | 1,130 RPM |
| Blade Material - Fans | Plastic |
| CFM @ 60 Hz | 3,296 |
| Hz | 60 Hz |
| Blade Dia. | 16" |
| Blade Finish | White |
| Housing Finish - Fans | Polished |
| High CFM | 3296 |
| Bearings | Permanently Lubricated Ball |
| Watts @ 60 Hz | 270 |
| Fan Item | Vertical Recirculation Fan |
| Light Kit | No Light |
| Country of Origin (subject to change) | Netherlands |
| Package Quantity | 1 |
